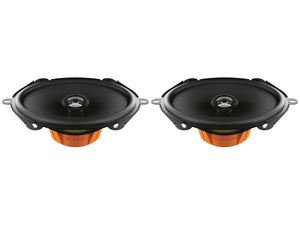

Hertz Dieci DCX 570.3 - 2-Way Coaxial Speaker Set

£79.99

In Stock

Quantity: Speaker Pair

  • Speaker Pair
Free Shipping For Over £100 to United Kingdom
SKU: HRT-DIEC-DCX570Categories: Coaxial Speakers, Hertz, Speakers

Description

This 2-way coax speaker is designed to satisfy specific installation and listening needs. The Hertz Dieci DCX 570.3 features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.

Features

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • Water-repellent treated paper cone.
  • TPU surround, for wide excursion and resonance damping.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Butyl rubber protective cover, against crashes and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.

Technical Specifications

  • Woofer Size: 5 x 7 in
  • Tweeter Size: 15mm (0.6 in)
  • Power Handling: 120W Peak - 60W Continuous
  • Impedance: 4Ω
  • Frequency Response: 60Hz ÷ 21kHz
  • Sensitivity: 93 dB SPL
  • Magnet Size: 80mm x 40mm x 15mm
  • Voice coil Ø: 25mm (1.0 in)
  • Woofer Magnet: High density flux ferrite
  • Tweeter Magnet: Neodymium
  • Woofer Cone: Water-repellent pressed paper
  • Tweeter Cone: PEI
  • Weight of one component: 0.76kg (1.67 lb)

Further Information

Hertz Dieci DCX 570.3 - 2-Way Coaxial Speaker Set - Tech Sheet

Hertz Dieci Speakers - User Manual

Hertz Dieci DCX 570.3 - 2-Way Coaxial Speaker Set
