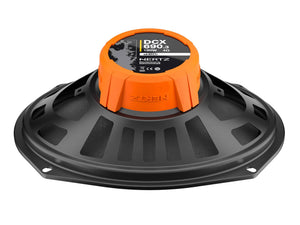

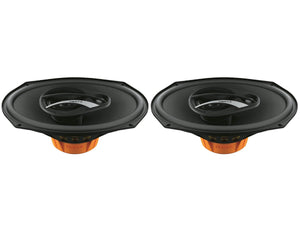

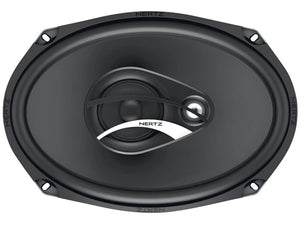

Hertz Dieci DCX 690.3 - 3-Way Coaxial Speakers
£109.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Order in the next for delivery by
hoursminutes
The Hertz Dieci DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.
Mesh Speaker Grilles Included.
Hertz Dieci DCX 690.3 - Product Features
- Large motor assembly for mobile voice coil control.
- Pure copper voice coil, wound on conex former, for maximum lightness.
- Water-repellent treated paper cone.
- TPU surround, for wide excursion and resonance damping.
- 60 mm paper tweeter with ferrite magnet.
- Supertweeter with PEI dome, for compactness and energy at high frequencies.
- DIN size basket protected by abrasion-proof dust paint.
- Tin-plated, high current terminals.
- Silver-plated lead wires for maximum reliability and conductivity.
- Butyl rubber protective cover, against crashes and abrasions.
- Epoxy glue for basket and motor system provides perfect coupling.
- Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Technical Specifications
- Woofer Size: 6.0 x 9.0 in
- Tweeter Size: 60mm (2.5 in)
- Supertweeter Size: 15mm (0.6 in)
- Power Handling: 180W Peak - 90W Continuous
- Impedance: 4Ω
- Frequency Response: 45Hz ÷ 21kHz
- Sensitivity: 93 dB SPL
- Magnet Size: 80mm x 40mm x 15mm
- Voice coil Ø: 25mm (1.0 in)
- Woofer and Tweeter Magnet: High density flux ferrite
- Woofer and Tweeter Cone: Water-repellent pressed paper
- Supertweeter Dome: PEI
- Weight of one component: 0.95kg (2.09 lb)
