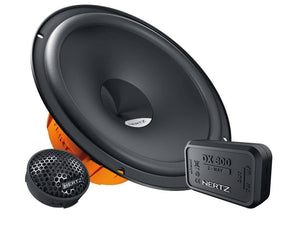

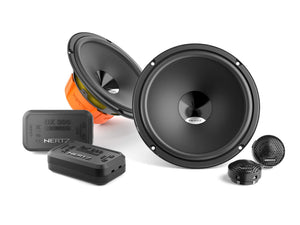

Hertz Dieci DSK 165.3 - Car Audio Speaker System

£109.99

In Stock

Quantity: Left & Right System

  • Left & Right System
Free Shipping Over £100 to United Kingdom
SKU: HRT-DSK-165-3Categories: Component Systems, Hertz, Speakers

Product Details

Hertz Dieci DSK 165.3 car audio system lets you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range.

The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.

Features

DT 24.3 Tweeter

  • 24 mm PEI dome-cone tweeter.
  • High efficiency annular acoustic lens.
  • High energy neodymium magnet.
  • Mounting accessories for external or embedded mounting included.

DSK 165.3

  • Large motor assembly for mobile voice coil control.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • V-cone® for best off-axis response, clear mid-high frequency detail and powerful bass.
  • TPU surround, for wide excursion and resonance damping.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity
  • Butyl rubber protective cover, against crashes and abrasions.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.

Technical Specifications

  • Power Handling - Peak W 160
  • Power Handling - Continuous W 80
  • Impedance - 4
  • Frequency Response - 50Hz ÷ 23kHz
  • Sensitivity:  93 dB SPL
  • Woofer size: 165mm (6.5 in)
  • Tweeter size: 24mm (0.9 in)
  • Woofer magnet: High density flux ferrite
  • Tweeter magnet: Neodymium
  • Woofer cone: Water-repellent pressed paper
  • Tweeter dome: PEI
  • Crossover type: Hi Pass
  • Crossover cut off: 3.5 kHz @ 12 dB Oct.

Further Information

Hertz Dieci DSK 165.3 - Car Audio Speaker System - Tech Sheet

Hertz Dieci Speakers - User Manual
