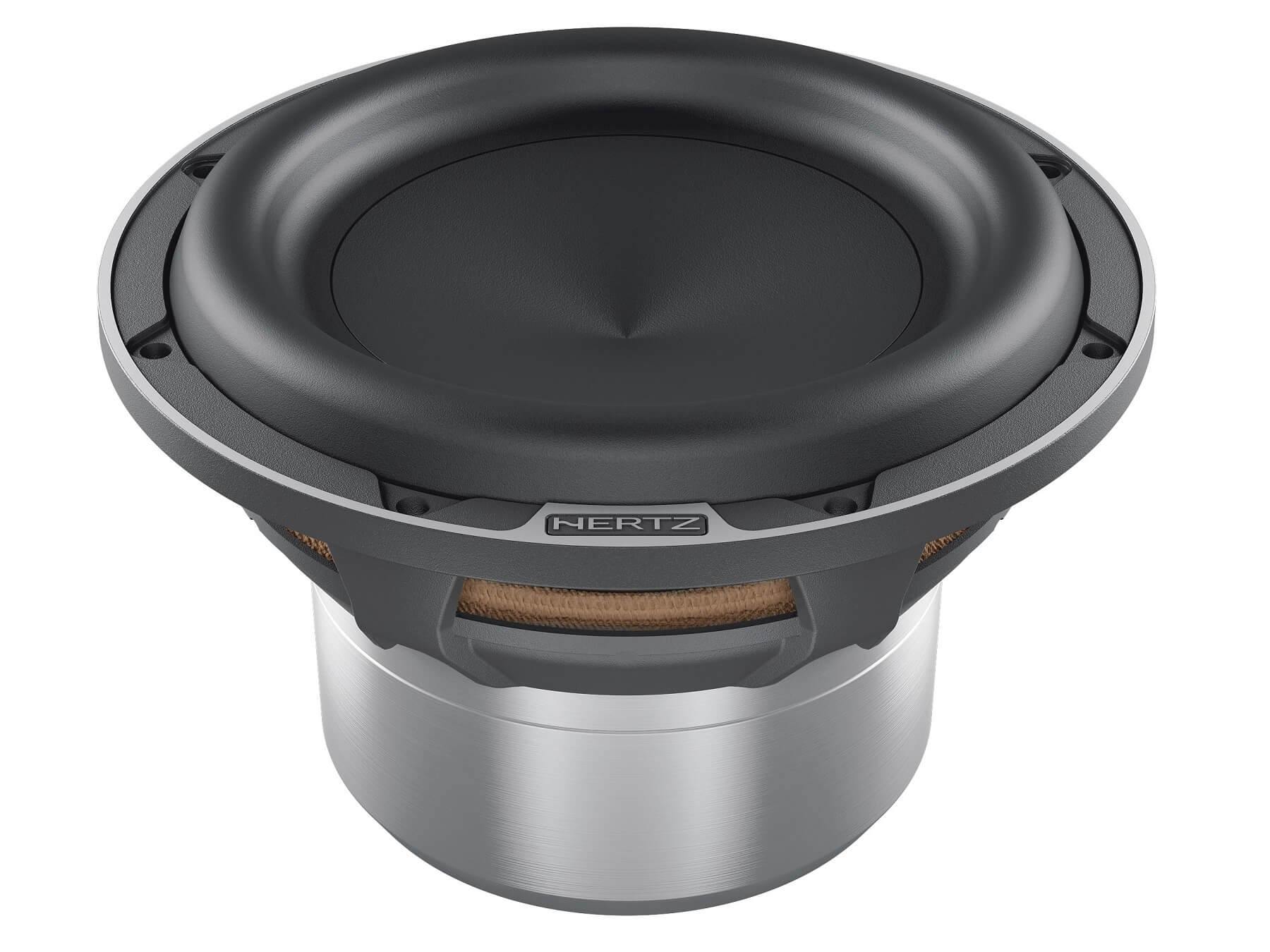

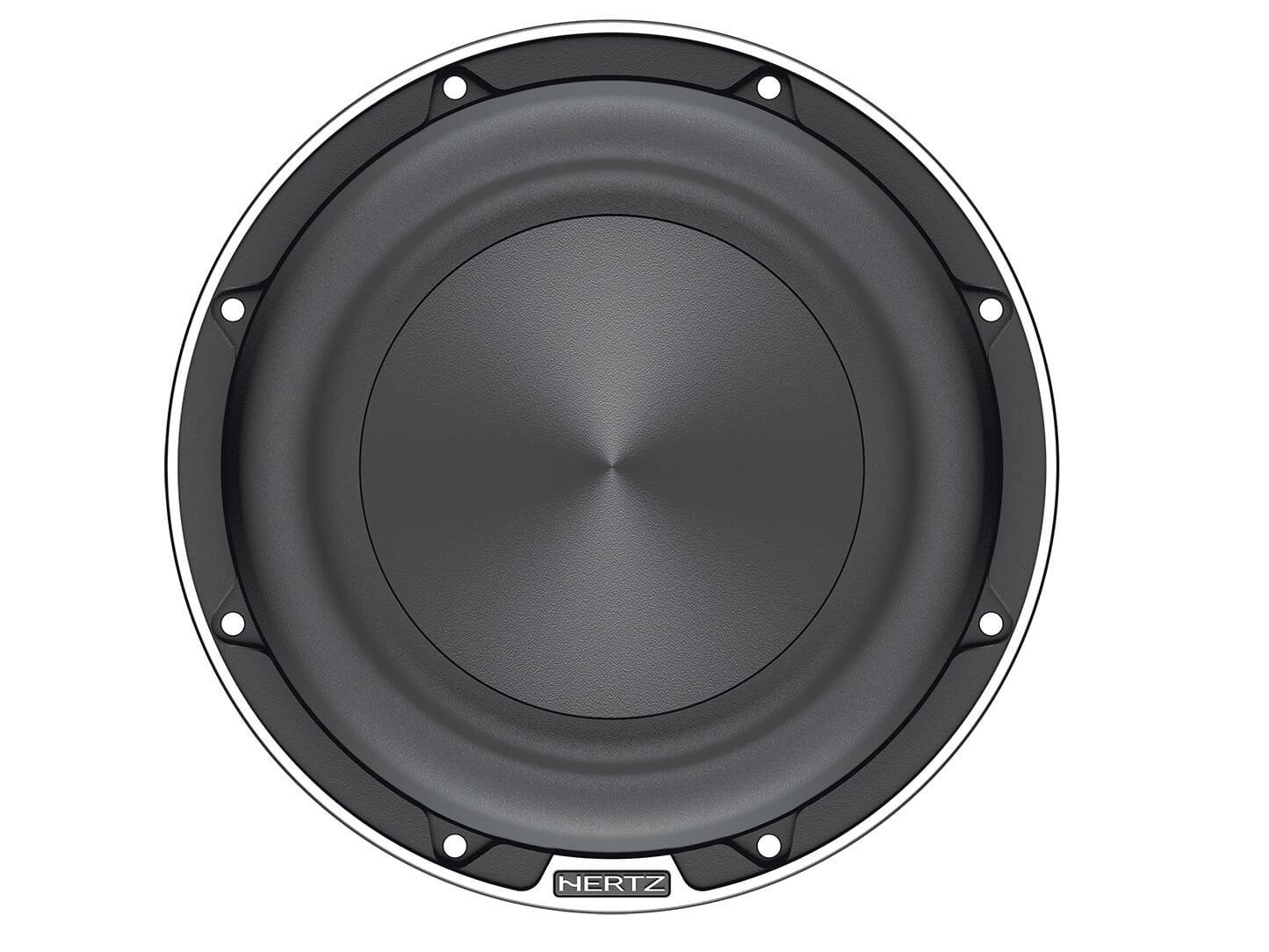

Hertz Mille Legend ML 2000.3 - Subwoofer - 200mm

Music fans who attend live concerts know very well the emotions that low undistorted frequencies without dynamic compression can arouse. For this reason, the Hertz R&D created the Hertz Mille Legend ML 2000.3 car audio subwoofer. During the long development phase, the designers set themselves just one ambitious goal: to transfer the emotions of a live performance to the car environment.

Thanks to a completely renewed design, the Mille Legend ML2000.3 car audio subwoofers have extremely compact size and are optimized to play in enclosures with reduced boxes. This choice of design combines two requirements hard to achieve up to now: reference performance and ease of installation.

Features

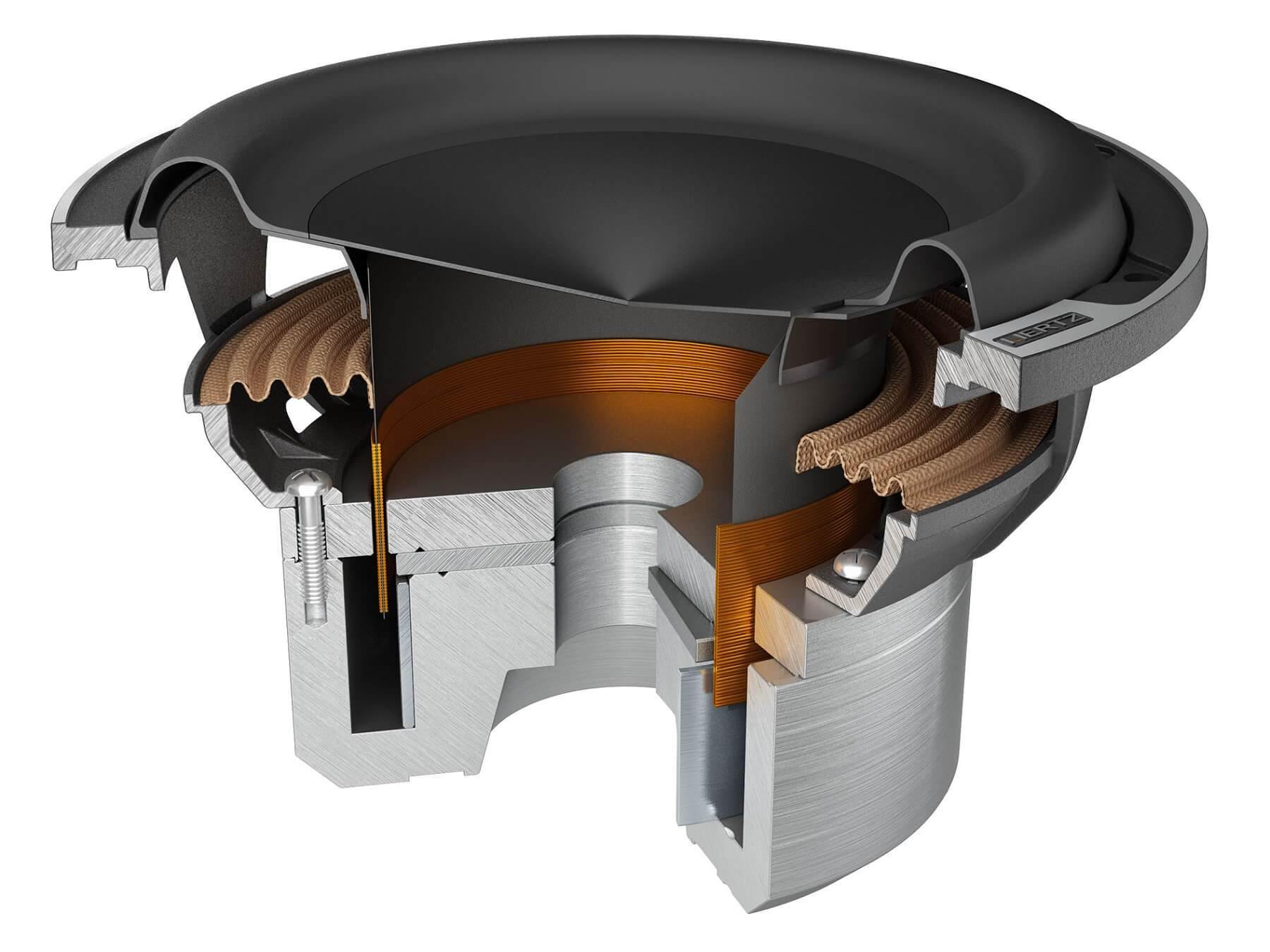

• Extraordinary large neodymium magnet, optimized with FEA simulations, to ensure magnetic field stability even under high excursion.
• Very low carbon content CNC machined plates, for maximum magnetic permeability and low distortion at high power levels.
• Voice coil internal magnet with high size / performance ratio, for maximum efficiency.
• CCAW, 100 mm (4”) voice coil, capable of handling 1400 W musical power, keeping the working temperature very low, reducing dynamic compression to the minimum.
• Voice coil wound with In/Out method, for even cooling of the different coil layers.
• Voice coil wound on TIL former: this material made from fibreglass combines the heat dissipation properties of aluminium with the stiffness of Polyamide composites, for a no-compromise acoustic performance.
• Central pole featuring “Aluminium Shorting Ring”, for minimum distortion and maximum extension at low frequency.
• Boundary Free” IIR rubber surround, for higher SPL performance with same external diameter.
• Exponential V-cone® with optimized geometry for high cone stiffness and strong resistance to deformation even at maximum excursions.
• Pressed-pulp cone with mineral powders, for superior rigidity and damping.

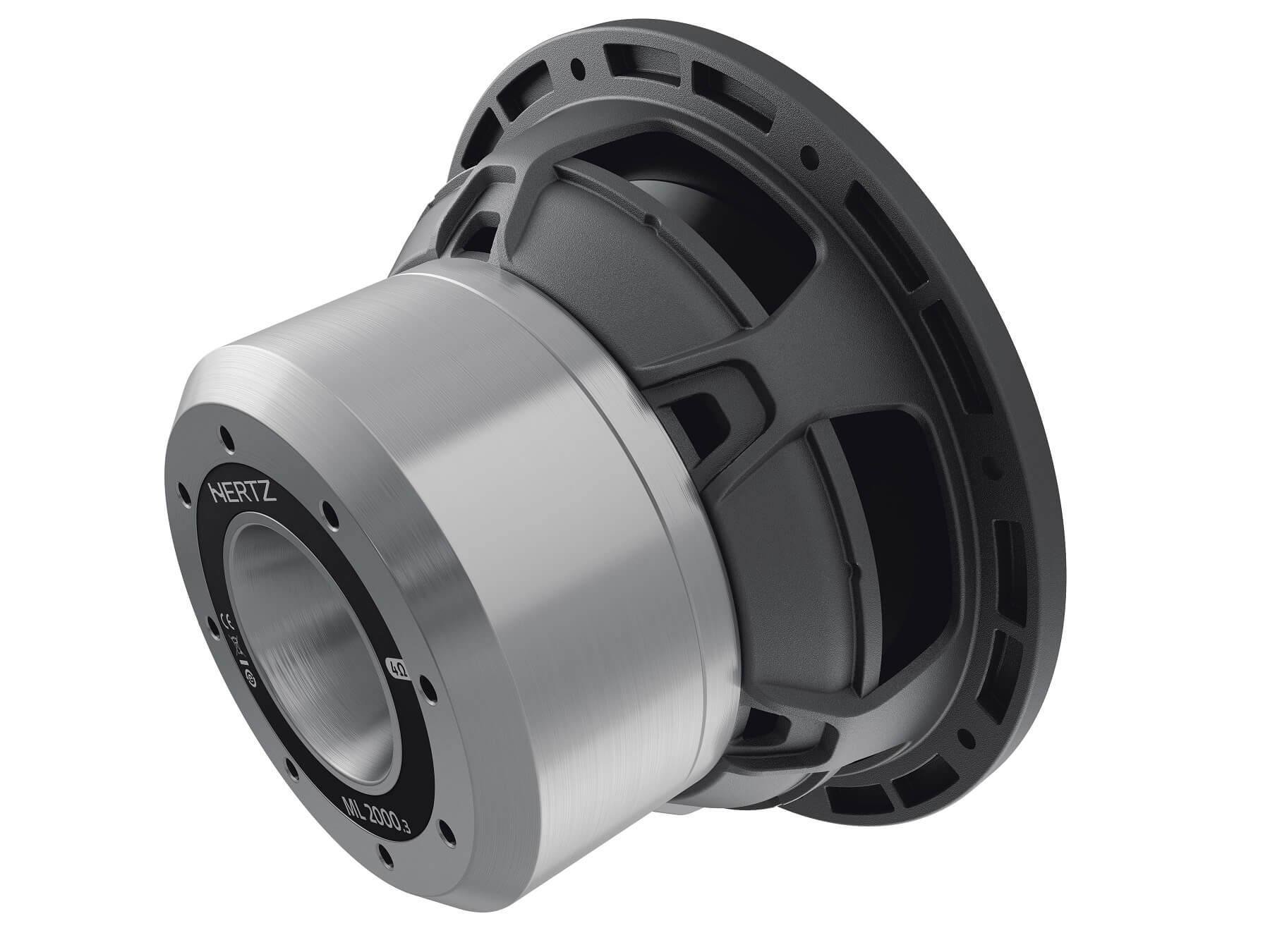

• Very acoustically transparent anti-resonant aluminium alloy basket featuring six-spoke self-standing structure and built-in venting holes underneath the spider.
• CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
• Ergonomic, ultra-compact design, with array of electro-acoustic parameters optimized for sealed box application with 10 - 17 lt volume.

Technical Specifications

• Subwoofer size: 200mm (8 in)
• Voice Coil Ø: 100mm (4 in)
• Power Handling: 1400W Peak / 700W Continuous
• Impedance: 4Ω
• Frequency Response: 30Hz - 600Hz
• Magnet size: 95mm x 28mm x 5mm
• Centre to centre distance: 199mm (7.83 in)
• Hole diameter / Eyelet Dimensions: 5.5mm (0.22 in)
• Weight of one speaker: 6.12Kg (13.5 ib)
• Magnet: Neodymium
• Dome/Cone: Pressed-pulp cone with mineral powders
• Xmech: ±23mm (0.9 in)
