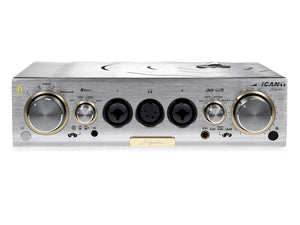

iFi Pro iCAN Signature - Headphone Amp / Pre-Amp

The iFi Pro iCAN Signature headphone and pre-am is iFi's new upgraded edition of the original Pro iCAN.

The Signature edition builds on the strengths of the Pro iCAN and features even more ultra-grade audiophile components designed to improve the listening experience even further.

It is a top-of-the-line headphone amplifier that is capable of driving anything and everything from the most sensitive custom iEMs to the AKG K-1000, the most difficult to drive headphone ever made.

Enhancements to the Pro iCAN Signature include:

• Revised circuit design incorporates even more ultra-grade audiophile components
• Upgraded power supply circuits to eradicate even more noise and distortion
• Top of the range iPower Elite offboard AC/DC power supply included
• Hand-selected and matched tubes in the output stage
• 4.4mm Balanced-headphone output

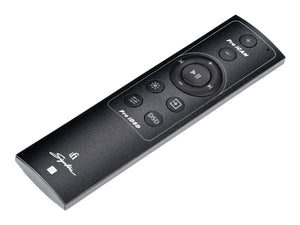

• New aluminium remote control

Balanced Pro Power

The Pro iCAN Signature sports an end-to-end fully differential balanced circuit design that delivers ultra low distortion. This means extraordinary quality with minimal interference and reduced crosstalk. The sound is cleaner, deeper and more dynamic.

It is also exceptionally powerful and will drive any headphone on the planet. It boasts balanced output power of >14,000mW and single-ended power output of >4,800mW.

And with variable gain, you can adjust the Pro iCAN Signature to drive your headphone of choice.

Tubes or No Tubes?

With the Pro iCAN Signature you can enjoy the sound of solid-state or tubes in one single package.

For some of your recordings, and depending on whether you are listening through headphones or speakers, you may prefer the ‘lively’ feel of solid-state or for others, the more ‘luxurious’ feel of Tube or Tube+.

The choice is yours at the flick of a switch in real time.

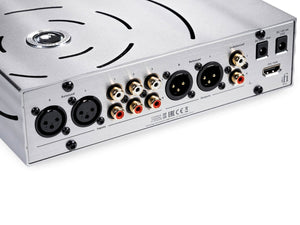

Rear Panel Connections

Power is Everything

The Pro iCAN Signature, ships with the flagship iFi iPOWER Elite.

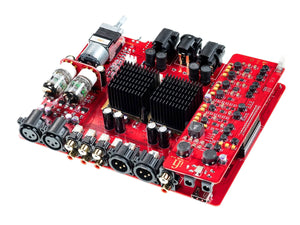

Coupled with the re-crafted power supply board which is up to 300% quieter, the music is buttery smooth.

Within and without – no stone is left unturned in the quest for the cleanest, purest power for the Pro iCAN Signature.

Technical Specifications

• Gain (User Selectable)
• Frequency Response: 0.5Hz to 500kHz(-3dB)
• Power Consumption: < 22W idle, 50W max
• Dimensions: 213 x 193 x 63 mm
• Net Weight: 1.93 kg

Headphone Outputs

• XLR 3-pin: Balanced separate left and right socket
• XLR 4-pin: Balanced stereo
• 6.3mm: SE stereo positive phase
• 6.3mm: SE stereo inverted phase
• BAL 4.4mm: Built-in IEMatch -18dB
• SE 3.5mm: Built-in IEMatch -14dB

THD + N

• Balanced
• Solid-State: 0.0015%
• Tube: 0.002%
• Tube+: 0.012%
• Single-Ended
• Solid-State: 0.005%
• Tube: 0.005%
• Tube+: 0.2%

Misc

• SNR: Balanced: >147dB(A) - Single-Ended: > 137dB(A)
• Output Power: Balanced: >14,000mW (@ 16) - Single-Ended: >4,800mW (@ 16)
• Output Voltage: Balanced: >23V (@ 600) - Single-Ended: >11.5v (@ 600)
• Input Voltage (Pro iDSD Signature): DC 9V/6.7A – 18V/3.35A
• Input Voltage (iPower Elite): AC 85 – 265V, 50/60Hz

Further Information

iFi Pro iCAN Signature - User Manual
