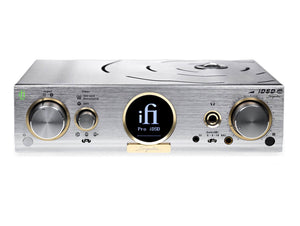

iFi Pro iDSD Signature - Streamer | DAC | Pre-Amp

The iFi Pro iDSD Signature is iFi's new flagship reference class DAC / Streamer / Pre-Amp. The Signature edition builds on the strengths of the original, multi-award winning Pro iDSD.

It continues to cater for those who love good music delivered at the highest quality.

Use the Pro iDSD Signature as a standalone unit, a DAC/preamp, a network streamer and a headphone amplifier.

Upgraded over the Original iDSD

The Pro iDSD Signature has:

• a sonically darker background and a punchier bass
• upgraded power -supply components to lower the overall system noise by 300%
• precisely matched NOS GE5670s tubes
• added support for USB1.0 (PS4/PS5)

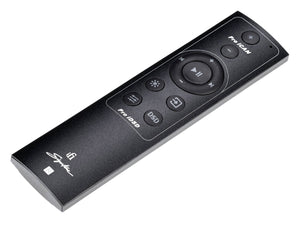

• a new aluminium remote control

A top-of the range iPower Elite power supply included.

Stacked with Tech

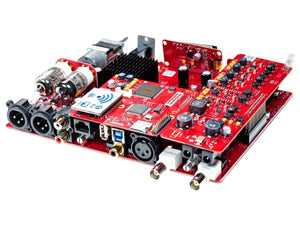

The Pro iDSD Signature uses a quad-stack DAC – 4 x DACs in an interleaved configuration – to deliver exceptional resolution.

The powerful XMOS XU216 X-Core 200 series chipset processes incoming digital data and enables the Pro iDSD Signature to provide state of the art audio support – from MP3, 32-bit/768kHz PCM, DSD512, 2xDXD and full MQA decoding.

Thanks to the Crysopeia FPGA Digital Engine the Pro iDSD Signature brings studio grade DSD remastering to a wider audience. It can upconvert PCM and DSD files to DSD512 and DSD1024.

And all controlled from an app in the palm of your hand.

Rear Panel Connections

E-Tailoring

The Pro iDSD Signature, like its predecessor, takes sonic tailoring to the extreme.

Listen to the your music to in solid-state, tube or tube+ modes, your choice, all at the flick of a switch.

Our Crysopeia FPGA Digital Engine strikes again as it enables the Pro iDSD Signature to offer several options when it comes to digital filtering. The GTO filter adds gravitas and a new dimension, and while the Bit Perfect, Bit Perfect+, Apodising and Transient Aligned filters give you even more choices to tweak the sound.

The discrete, fully balanced Class A amplifier stage offers adjustable gain.

Technical Specifications

• Sample Rates: PCM 768kHz / DSD 49.152MHz (DSD 1024) / MQA 352.8KHz/DXD (2xDXD)
• Inputs: USB / AES3 (XLR) / S/PDIF (coaxial/optical combo) BNC / Ethernet / Wi-Fi / Micro SD
• Filters: Bit Perfect / Bit Perfect+ / Gibbs Transient Optimised / Apodising / Transient Aligned
• Gain: User-Selectable: 0dB, 9dB and 18dB (Headphone Section)
• Dynamic Range: 119dBA (Solid-State, PCM, -60dBFS)
• Output Power: (16, balanced/single-ended): >4,200mW /1>1,575mW
• Output Voltage: (600, balanced/single-ended): >11.7V / >5.9V
• Input Voltage (Pro iDSD): DC 9V/6.7A – 18V/3.35A
• Input Voltage (iPower Elite): AC 85 – 265V, 50/60Hz
• Power Consumption: < 22W idle, 50W max
• Dimensions: 213 x 220x 63 mm
• Net Weight: 1980 g

Further Information

iFi Pro iDSD Signature - User Manual
