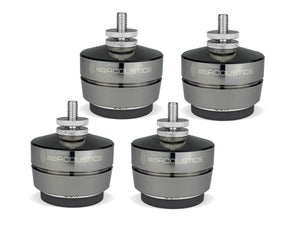

IsoAcoustics GAIA I - Speaker Isolators

The IsoAcoustics GAIA I speaker isolators provide improved sound clarity and openness for floor standing speakers and subwoofers weighing 220 lbs (100KG) or less.

GAIA I isolators are finished with a machined stainless steel housing with an elegant dark chrome finish. Incorporating IsoAcoustics patented design principles, the GAIA I provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position.

Internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness. The GAIA I will reveal clarity and openness from your speakers like you’ve never heard.

The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.

Product Selector

To find what IsoAcoustics Stand and Accessories will work for your equipment, click on the link below for the Product Selector. (This will open a new window)

IsoAcoustics Product Selector

Installation of the GAIA Isolators

Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

The GAIA I includes thread adaptors for sizes M8-1.25, M12-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.

Frequently Asked Questions

Which GAIA model will work best with my speakers?

The GAIA model should be selected based on the weight that they are supporting. The weight limits we set are based on the performance curve. The GAIA perform well up to the specified weight limits, but once you are within 10% of the weight limit, we recommend using the next size up for best results. We do not recommend exceeding the weight limits of the GAIA’s or GAIA-TITAN’s.

What thread sizes are included with the GAIA?

The GAIA-TITAN isolators come with thread adaptors for the 3 most common thread sizes which fit the majority of speakers. The thread adaptor sizes included are as follows:

• GAIA III – M6-1.0, M8-1.25 and ¼”-20
• GAIA II – M6-1.0, M8-1.25, ¼”-20
• GAIA I – M8-1.25, M12-1.25, ¼”-20

How do I determine the thread size for my speaker?

Please click here for information on thread sizes and instructions on how to determine the thread size for your speaker or subwoofer.

Product Specifications

• Dimensions (W x H): 2.5” x 1.9” (62mm x 49mm)
• Maximum Weight: 220lbs (100kg) per set of 4
• Quantity: 4 per box
• Thread sizes included: M8-1.25, M12-1.25 and ¼”-20
