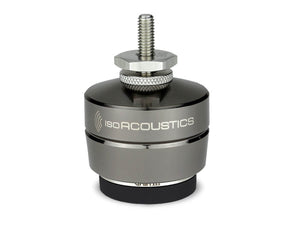

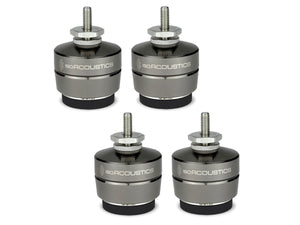

IsoAcoustics GAIA III - Speaker Isolators

The IsoAcoustics GAIA III speaker isolators are the union of aesthetic visual design and acoustic engineering. The small compact design delivers unbelievable acoustic isolation that will bring out clarity and openness from your speaker like you’ve never heard.

The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.

Designed for floor standing speakers and subwoofers weighing up to 70 lbs (32 KG), the GAIA III will provide more openness and clarity. Structural borne noise is greatly reduced while internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.

First Impressions of the IsoAcoustics GAIA 3 - Video

Product Selector

To find what IsoAcoustics Stand and Accessories will work for your equipment, click on the link below for the Product Selector. (This will open a new window)

IsoAcoustics Product Selector

Installation of the GAIA Isolators

Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. The GAIA III provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.

The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.

The GAIA III includes thread adaptors for sizes M6-1.0, M8-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.

Frequently Asked Questions

Which GAIA model will work best with my speakers?

The GAIA model should be selected based on the weight that they are supporting. The weight limits we set are based on the performance curve. The GAIA perform well up to the specified weight limits, but once you are within 10% of the weight limit, we recommend using the next size up for best results. We do not recommend exceeding the weight limits of the GAIA’s or GAIA-TITAN’s.

What thread sizes are included with the GAIA?

The GAIA-TITAN isolators come with thread adaptors for the 3 most common thread sizes which fit the majority of speakers. The thread adaptor sizes included are as follows:

• GAIA III – M6-1.0, M8-1.25 and ¼”-20
• GAIA II – M6-1.0, M8-1.25, ¼”-20
• GAIA I – M8-1.25, M12-1.25, ¼”-20

How do I determine the thread size for my speaker?

Please click here for information on thread sizes and instructions on how to determine the thread size for your speaker or subwoofer.

Product Specifications

• Dimensions (W x H): 1.7” x 1.5” (43mm x 39mm)
• Maximum Weight: 70lbs (32kg) per set of 4
• Quantity: 4 per box
• Thread sizes included: M6-1.0, M8-1.25 and ¼”-20
