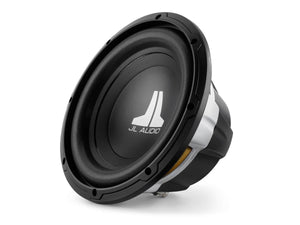

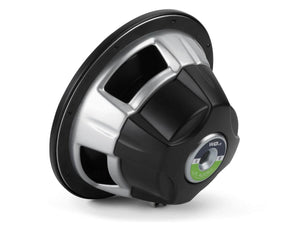

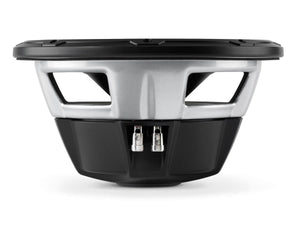

The JL Audio 10W0v3 10 Inch Subwoofer is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 inch diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
|SUBWOOFER||10W0v3 - 4 Ohm|
|Free Air Resonance (Fs):||32.09 Hz|
|Electrical “Q” (Qes):||0.640|
|Mechanical “Q” (Qms):||10.752|
|Total Speaker “Q” (Qts):||0.604|
|Equivalent Compliance (Vas):||31.01 liters|
|One-way, Linear Excursion (Xmax):||11.4 mm|
|Efficiency (1W/1m):||84.07 dB SPL|
|Effective Piston Area (Sd):||>0.0316 m2|
|DC Resistance (Re):||4.280 ohm|
|Nominal Impedance:||4 ohm|
|Power Handling (continuous):||300 W|
