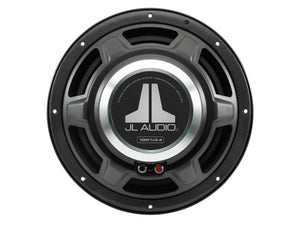

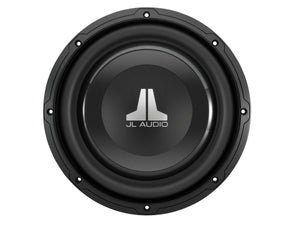

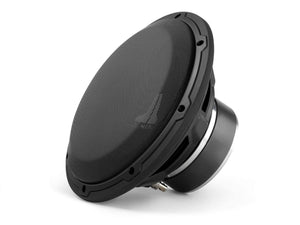

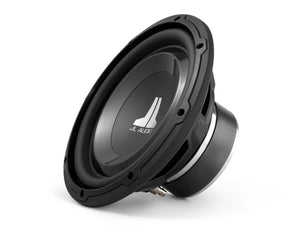

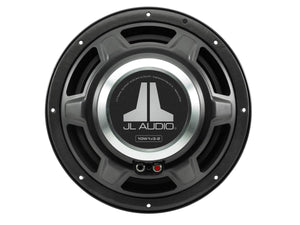

The JL Audio 10W1v3 10 Inch Subwoofer is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary.
Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 10W1v3-2 is best used with amplifier power in the 75W - 300W range and is optimised to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
|SUBWOOFER||10W1v3 - 2 Ohm||10W1v3 - 4 Ohm|
|Free Air Resonance (Fs):||25.23 Hz||26.15 Hz|
|Electrical “Q” (Qes):||0.463||0.475|
|Mechanical “Q” (Qms):||7.246||7.243|
|Total Speaker “Q” (Qts):||0.436||0.446|
|Equivalent Compliance (Vas):||44.15 litres||43.41 litres|
|One-way, Linear Excursion (Xmax):||11.4 mm||11.4 mm|
|Efficiency (1W/1m):||83.9 dB SPL||84.2 dB SPL|
|Effective Piston Area (Sd):||0.0346 m2||0.0346 m2|
|DC Resistance (Re):||2.233 ohm||3.902 ohm|
|Nominal Impedance:||2 ohm||4 ohm|
|Power Handling (continuous):||300 W||300 W|
