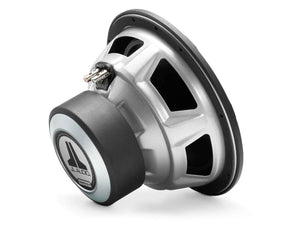

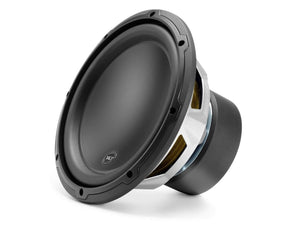

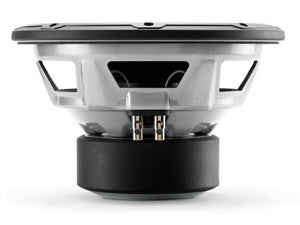

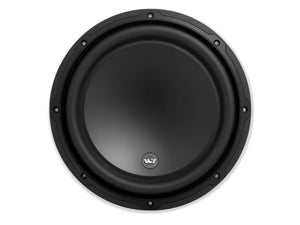

The JL Audio 10W3v3 10 Inch Subwoofer strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.
The 10W3v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7 L) sealed enclosure, or a 1.25 cu. ft. (35.4 L) ported enclosure.
|SUBWOOFER||10W3v3 - 2 Ohm||10W3v3 - 4 Ohm|
|Free Air Resonance (Fs):||32.97 Hz||31.49 Hz|
|Electrical “Q” (Qes):||0.533||0.523|
|Mechanical “Q” (Qms):||7.027||7.017|
|Total Speaker “Q” (Qts):||0.495||0.485|
|Equivalent Compliance (Vas):||32.17 litres||32.23 litres|
|One-way, Linear Excursion (Xmax):||14.0 mm||14.0 mm|
|Efficiency (1W/1m):||85.37 dB SPL||84.87 dB SPL|
|Effective Piston Area (Sd):||0.0345 m2||0.0345 m2|
|DC Resistance (Re):||1.7 ohm||3.567 ohm|
|Nominal Impedance:||2 ohm||4 ohm|
|Power Handling (continuous):||500 W||500 W|
