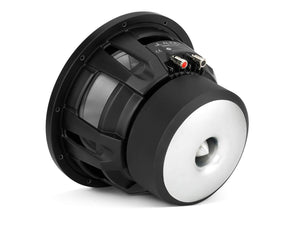

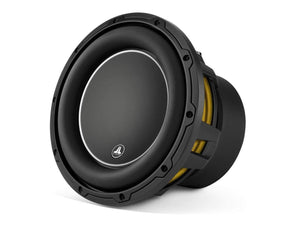

JL Audio 10W6v3 - 10 Inch Subwoofer - 600W / Dual 4 Ohm


In StockIn StockOut of Stock
VAT included.
Out of Stock
Order within for delivery by hoursminutes

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

The JL Audio 10W6v3 10 Inch Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.

The 10W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 L) of air space, or a 0.75 cu. ft. (21.2 L) ported enclosure.

Greater excursion capability and higher power handling distinguish it from our 10W3v3 10-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.

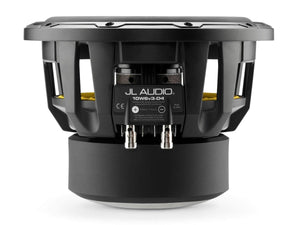

Please note that the W6v3 is a dual voice coil driver. BOTH voice coils must be connected to the amplifier (in series or parallel) for the speaker to operate properly. To accomplish this, each W6v3 features a pair of main input connection push-terminals and four voice coil configuration tab terminals.

Technical Specifications

SUBWOOFER 10W6v3 - 4 Ohm
Free Air Resonance (Fs): 30.12 Hz
Electrical “Q” (Qes): 0.543
Mechanical “Q” (Qms): 9.228
Total Speaker “Q” (Qts): 0.513
Equivalent Compliance (Vas): 23.25 liters
One-way, Linear Excursion (Xmax): 19 mm
Efficiency (1W/1m): 82.7 dB SPL
Effective Piston Area (Sd): 0.0318 m2
DC Resistance (Re): 6.452 ohm
Nominal Impedance: Dual 4-ohm voice coils
Power Handling (continuous): 600 W

Further Information

JL Audio 10W6v3-D4 - 10 Inch Subwoofer - User Manual
