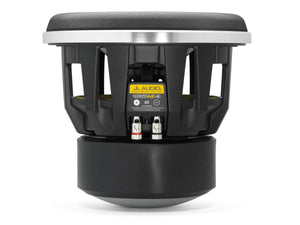

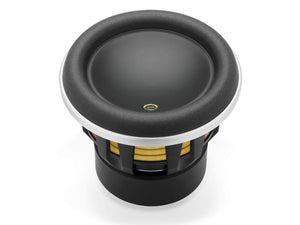

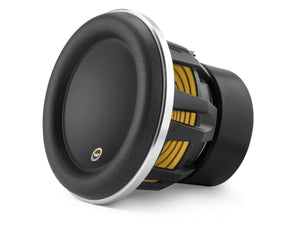

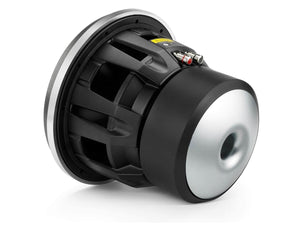

JL Audio 10W7AE-3 - 10 Inch Subwoofer 750W - Anniversary Edition

£749.99

In StockIn StockOut of Stock
VAT included.

Notify me when this product is available:

apple paygoogle payklarna-pay-latermaestromasterpaypalshopify payvisa

The JL Audio 10W7AE 10 Inch Subwoofer delivers amazing excursion capability for its size, but it also maintains complete composure under power and is able to track complex bass material with uncanny accuracy and power.

The 10W7AE is best used with amplifier power in the 300W - 750W range and is optimized to operate in a 1.25 cu. ft. (35.4 L) sealed enclosure, or a 1.5 cu. ft. (42.5 L) ported enclosure.

The W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

Technical Specifications

SUBWOOFER 10W7AE - 3 Ohm
Free Air Resonance (Fs): 30.6 Hz
Electrical “Q” (Qes): 0.578
Mechanical “Q” (Qms): 7.647
Total Speaker “Q" (Qts): 0.537
Equivalent Compliance (Vas): 36.1 Litres
One-way, Linear Excursion (Xmax): 23 mm
Efficiency (1W/1m): 84.3 dB SPL
Effective Piston Area (Sd): 0.0386 m2
DC Resistance (Re): 2.75 ohm
Nominal Impedance: 3 ohm
Power Handling (continuous): 750 W

Further Information

JL Audio 10WAE-3 - 10 Inch Subwoofer - User Manual
