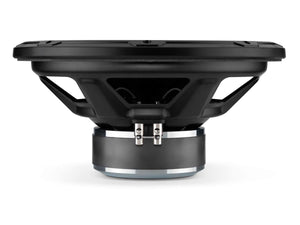

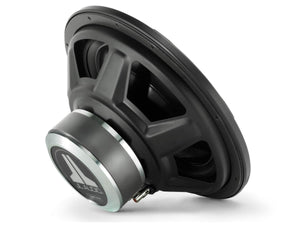

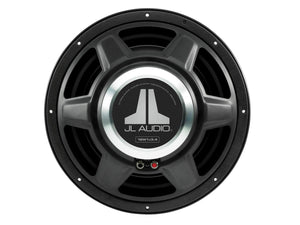

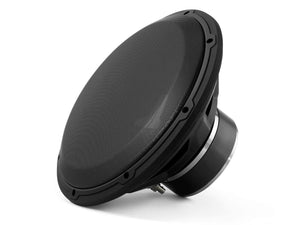

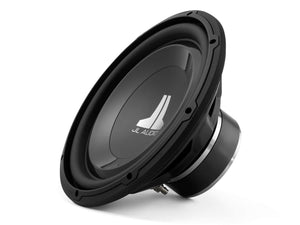

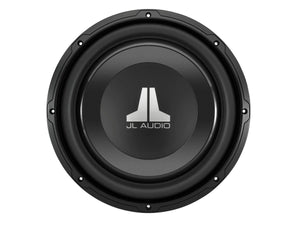

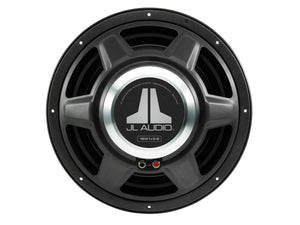

The JL Audio 12W1v3 12 Inch Subwoofer is a lightweight driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 12W1v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 Litre) sealed enclosure.
Technical Specifications
SUBWOOFER | 12W1v3 - 2 Ohm | 12W1v3 - 4 Ohm |
Free Air Resonance (Fs): | 26.55 Hz | 26.21 Hz |
Electrical “Q” (Qes): | 0.554 | 0.535 |
Mechanical “Q” (Qms): | 8.731 | 8.200 |
Total Speaker “Q” (Qts): | 0.521 | 0.502 |
Equivalent Compliance (Vas): | 72.04 Litres | 76.63 Litres |
One-way, Linear Excursion (Xmax): | 11.4 mm | 11.4 mm |
Efficiency (1W/1m): | 85.9 dB SPL | 86.1 dB SPL |
Effective Piston Area (Sd): | 0.0525 m2 | 0.0525 m2 |
DC Resistance (Re): | 2.210 ohm | 3.915 ohm |
Nominal Impedance: | 2 ohm | 4 ohm |
Power Handling (continuous): | 300 W | 300 W |
