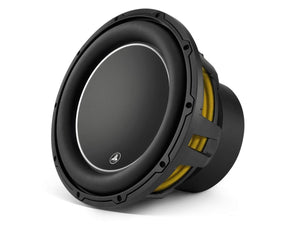

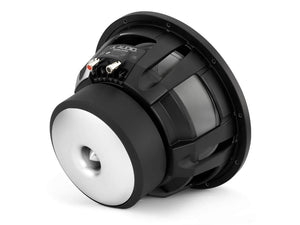

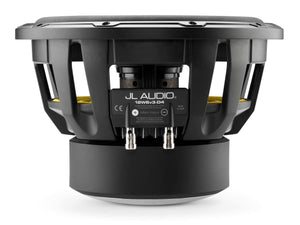

The JL Audio 12W6v3-D4 - 12 Inch Subwoofer is a highly advanced Subwoofer that offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimised to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 L) of air space, or a 1.3 cu. ft (36.8 L) ported enclosure.
Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.
|SUBWOOFER||12W6v3 - 4 Ohm|
|Free Air Resonance (Fs):||26.919 Hz|
|Electrical “Q” (Qes):||0.487|
|Mechanical “Q” (Qms):||9.365|
|Total Speaker “Q” (Qts):||0.463|
|Equivalent Compliance (Vas):||54.37 Litres|
|One-way, Linear Excursion (Xmax):||19 mm|
|Efficiency (1W/1m):||85.4 dB SPL|
|Effective Piston Area (Sd):||0.0486 m2|
|DC Resistance (Re):||6.493 ohm|
|Nominal Impedance:||Dual 4-ohm voice coils|
|Power Handling (continuous):||600 W|
