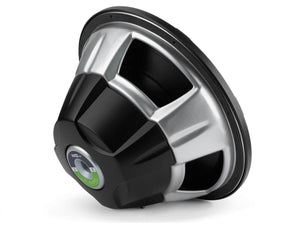

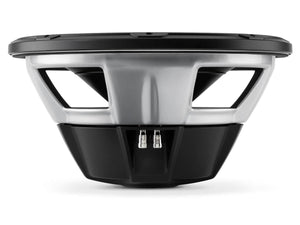

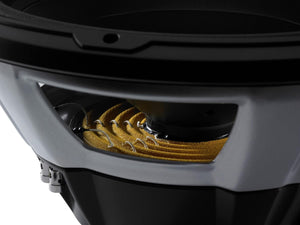

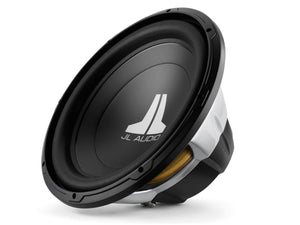

The JL Audio 15W0v3 15 Inch Subwoofer offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 53.1 L sealed enclosure, or a 77.88 L ported enclosure.
SUBWOOFER | 15W0v4 - 4 Ohm |
Free Air Resonance (Fs): | 24.43 Hz |
Electrical “Q” (Qes): | 0.508 |
Mechanical “Q” (Qms): | 9.474 |
Total Speaker “Q” (Qts): | 0.482 |
Equivalent Compliance (Vas): | 144.60 Litres |
One-way, Linear Excursion (Xmax): | 12.7 mm |
Efficiency (1W/1m): | 88.20 dB SPL |
Effective Piston Area (Sd): | 0.0789 m2 |
DC Resistance (Re): | 3.555 ohm |
Nominal Impedance: | 4 ohm |
Power Handling (continuous): | 500 W |
