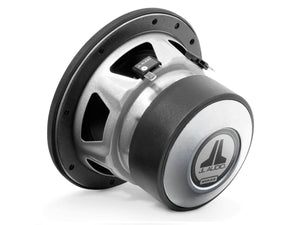

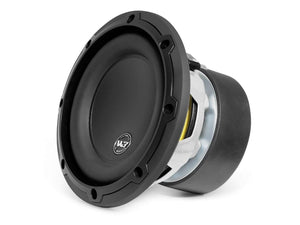

The JL Audio 6W3v3 6.5 Inch Subwoofer is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 4.2 L sealed enclosure, or a 7.1 L ported enclosure.
Technical Specifications
| SUBWOOFER | 6W3v3 - 4 Ohm |
| Free Air Resonance (Fs): | 41.80 Hz |
| Electrical “Q” (Qes): | 0.533 |
| Mechanical “Q” (Qms): | 11.027 |
| Total Speaker “Q” (Qts): | 0.508 |
| Equivalent Compliance (Vas): | 5.13 Litres |
| One-way, Linear Excursion (Xmax): | 8.89 mm |
| Efficiency (1W/1m): | 80.49 dB SPL |
| Effective Piston Area (Sd): | 0.0112 m2 |
| DC Resistance (Re): | 3.476 ohm |
| Nominal Impedance: | 4 ohm |
| Power Handling (continuous): | 150 W |
