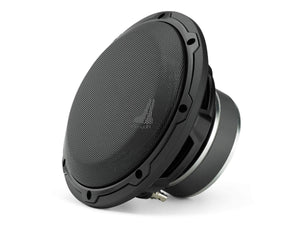

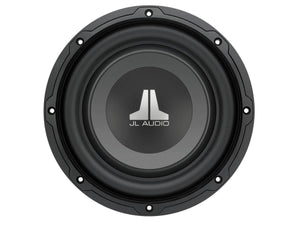

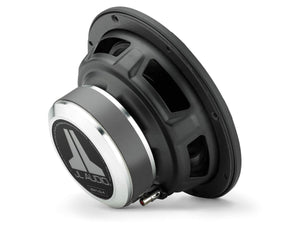

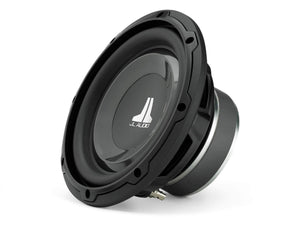

The JL Audio 8W1v3 8 Inch Subwoofer is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimised to operate in a compact 9.90 L sealed enclosure.
Technical Specifications
SUBWOOFER | 8W1v3 - 4 Ohm |
Free Air Resonance (Fs): | 35.40 Hz |
Electrical “Q” (Qes): | 0.451 |
Mechanical “Q” (Qms): | 5.791 |
Total Speaker “Q” (Qts): | 0.418 |
Equivalent Compliance (Vas): | 19.26 Litres |
One-way, Linear Excursion (Xmax): | 8 mm |
Efficiency (1W/1m): | 84.8 dB SPL |
Effective Piston Area (Sd): | 0.0211 m2 |
DC Resistance (Re): | 4.06 ohm |
Nominal Impedance: | 4 ohm |
Power Handling (continuous): | 150 W |
