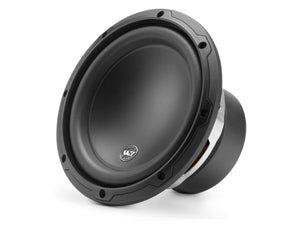

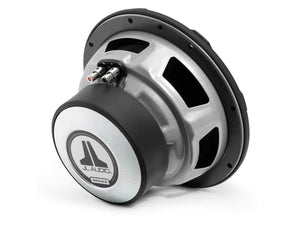

If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the JL Audio 8W3v3 8 Inch Subwoofer will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion.
The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 8.5 lL sealed enclosure, or a 9.9 L ported enclosure.
|SUBWOOFER||8W3v3 - 4 Ohm|
|Free Air Resonance (Fs):||35.14 Hz|
|Electrical “Q” (Qes):||0.501|
|Mechanical “Q” (Qms):||7.071|
|Total Speaker “Q” (Qts):||0.467|
|Equivalent Compliance (Vas):||15.29 Litres|
|One-way, Linear Excursion (Xmax):||10.0 mm|
|Efficiency (1W/1m):||83.24 dB SPL|
|Effective Piston Area (Sd):||0.021 m2|
|DC Resistance (Re):||3.77 ohm|
|Nominal Impedance:||4 ohm|
|Power Handling (continuous):||250 W|
