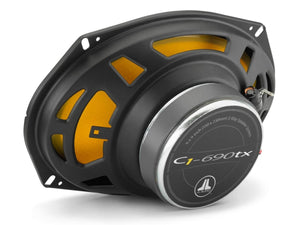

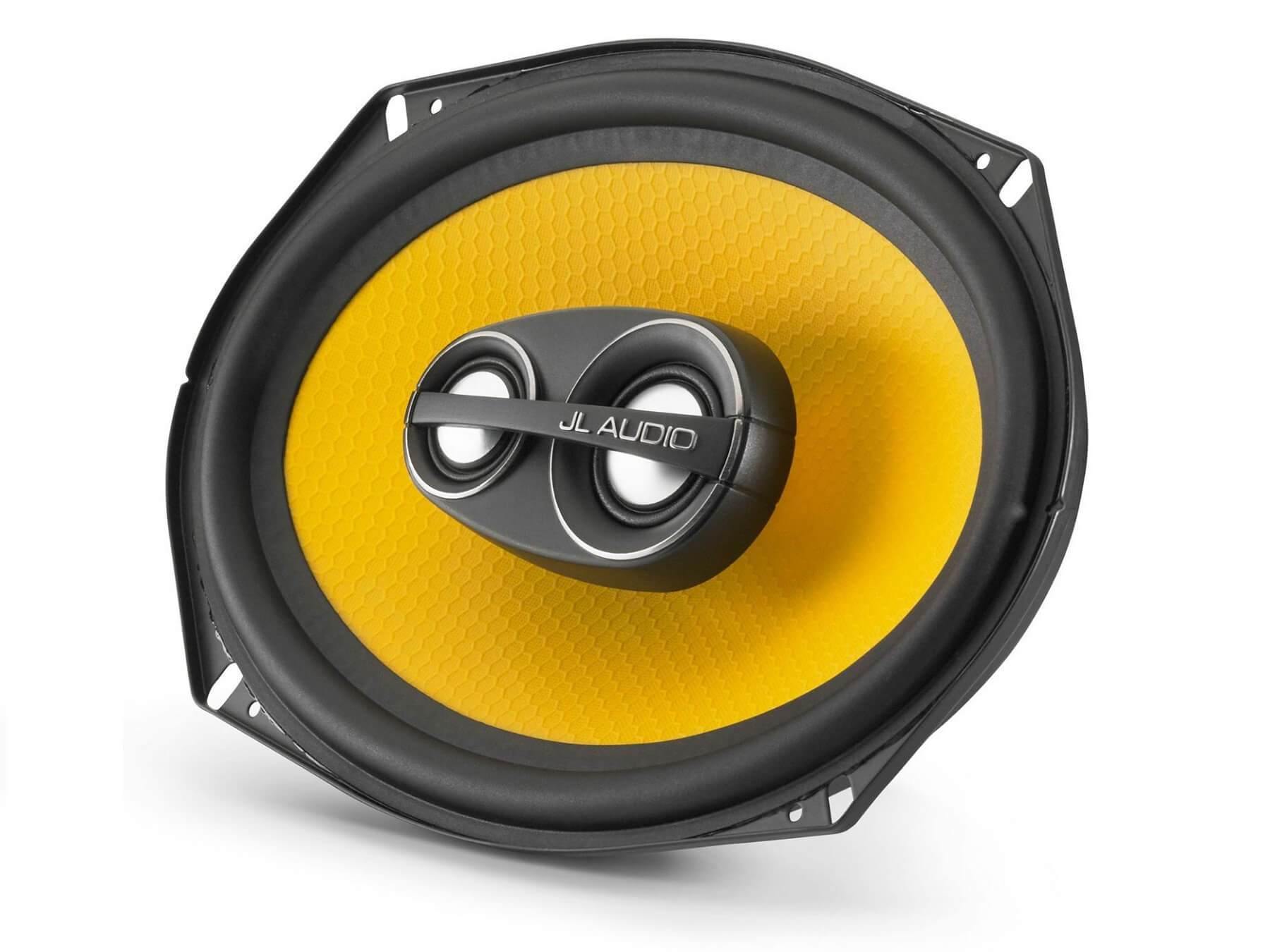

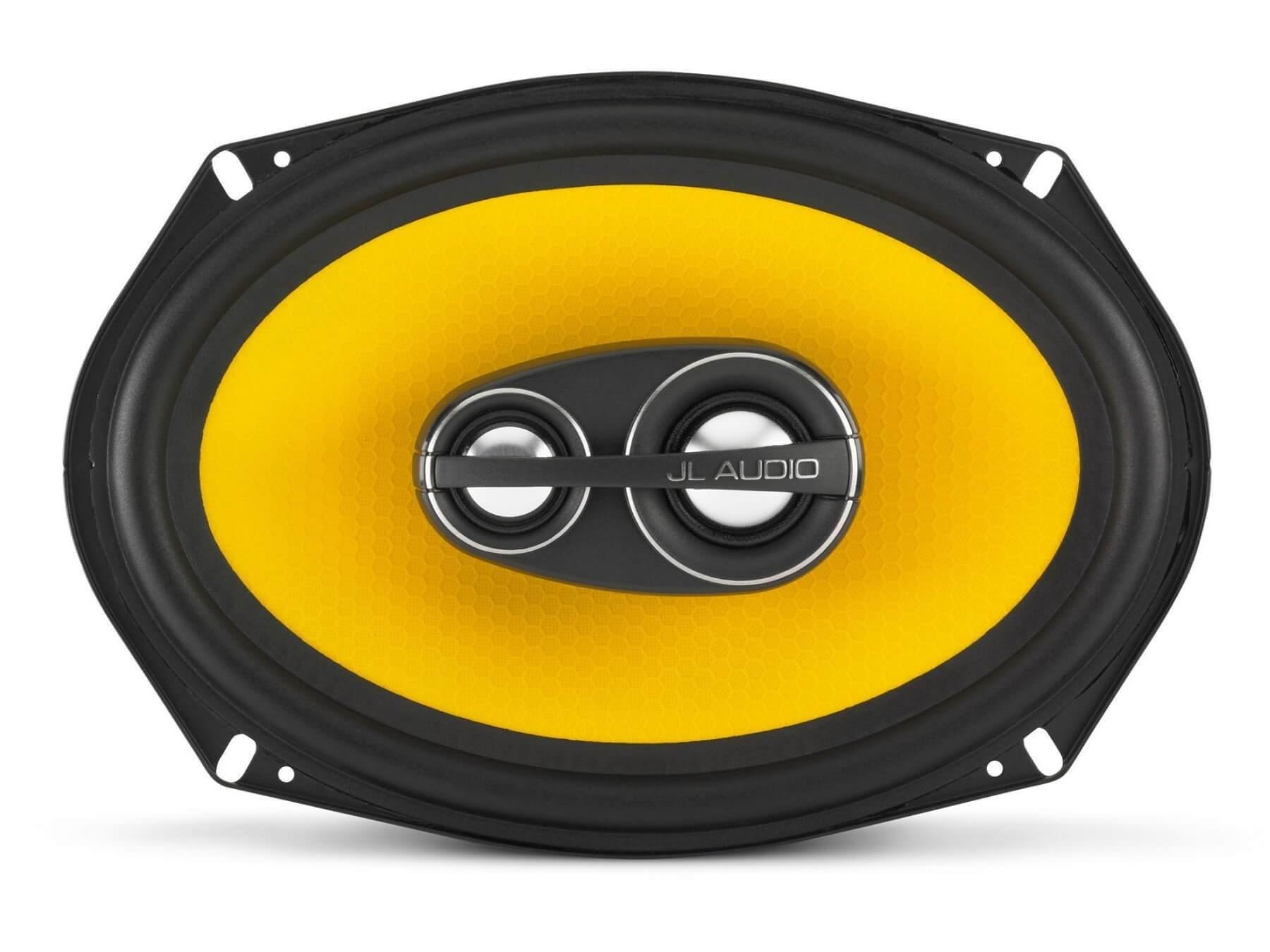

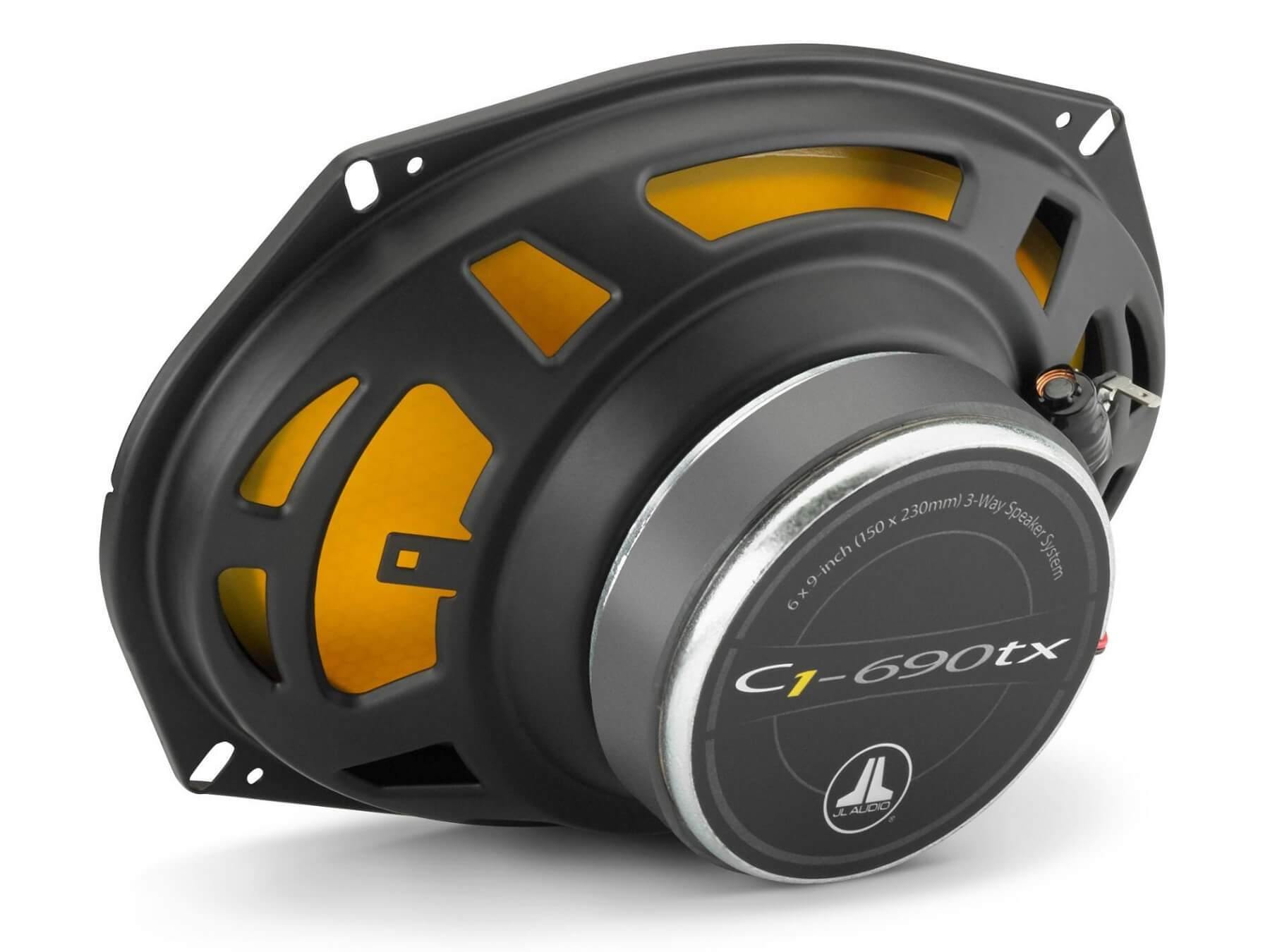

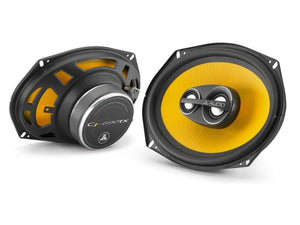

JL Audio C1-690tx - 6 x 9 Inch Triaxial Speaker System
£199.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
To facilitate fit, spacer adaptor rings are included allowing the JL Audio C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the JL Audio C1-690tx Elliptical Speaker System is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
Sold as a pair. Grilles not available.
What's in the Box?
- Two (2) C1-690tx 6 x 9-inch (150 x 230 mm) 3-Way loudspeakers
- Eight (8) #8 x 1.50-inch (38 mm) sheet metal screws
- Eight (8) mounting clips
- Two (2) 4.7 mm female crimpable connectors
- Two (2) 2.8 mm female crimpable connectors
- Two (2) bottom-mount spacer adaptor rings
Technical Specifications
- Continuous Power Handling: 60 Watts
- Recommended Amp Power: 10-100 Watts per channel (RMS)
- Efficiency: 90.5 dB @ 1W / 1m | 96.5 dB @ 1W / 0.5m
- Sensitivity: 93.0 dB @ 2.83V / 1m
- Nominal Impedance: 4 ohm
- Frequency Response: 36 Hz - 24 kHz ± 3 dB
Further Information
JL Audio C1-690tx - Elliptical Triaxial Speaker System - User Manual
