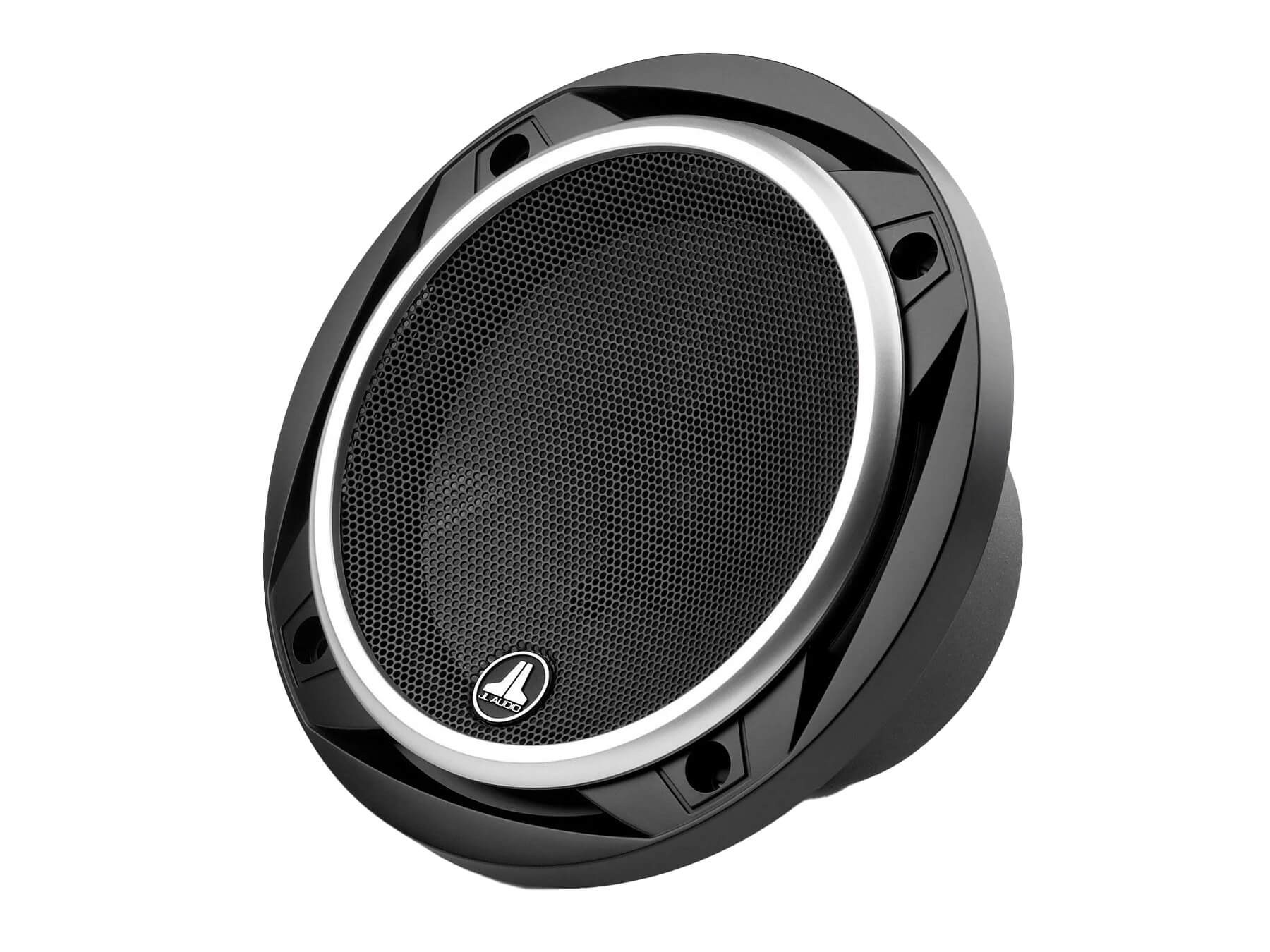

JL Audio C2-525cw - 5.25 Inch Woofer
£169.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The JL Audio C2-525cw is a 5.25-inch (130 mm) component woofer with mineral-filled polypropylene cone, long excursion capabilities and stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Dimensions
- Frame Outer Diameter* (A): 5.20 in / 132 mm
- Grille Tray Outer Diameter (B): 6.01 in / 153 mm
- Motor Outer Diameter (C): 2.76 in / 70 mm
- Frontal Coaxial Tweeter Protrusion (D): N/A
- Frontal Grille Protrusion** (E): 0.72 in / 18 mm
- Mounting Hole Diameter (F): 4.56 in / 116 mm
- Mounting Depth (G): 2.50 in / 64 mm
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
Technical Specifications
- Continuous Power Handling: 60 Watts
- Recommended Amp Power: 15-100 Watts per channel (RMS)
- Efficiency: 89.0 dB @ 1W/1m
- Nominal Impedance: 4 ohm
- Frequency Response: 63 Hz - 22 KHz ± 3 dB
