The JL Audio C2-600cw is a 6-inch (150 mm) component woofer with a mineral-filled polypropylene cone, long excursion capabilities and a stamped steel frame. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.

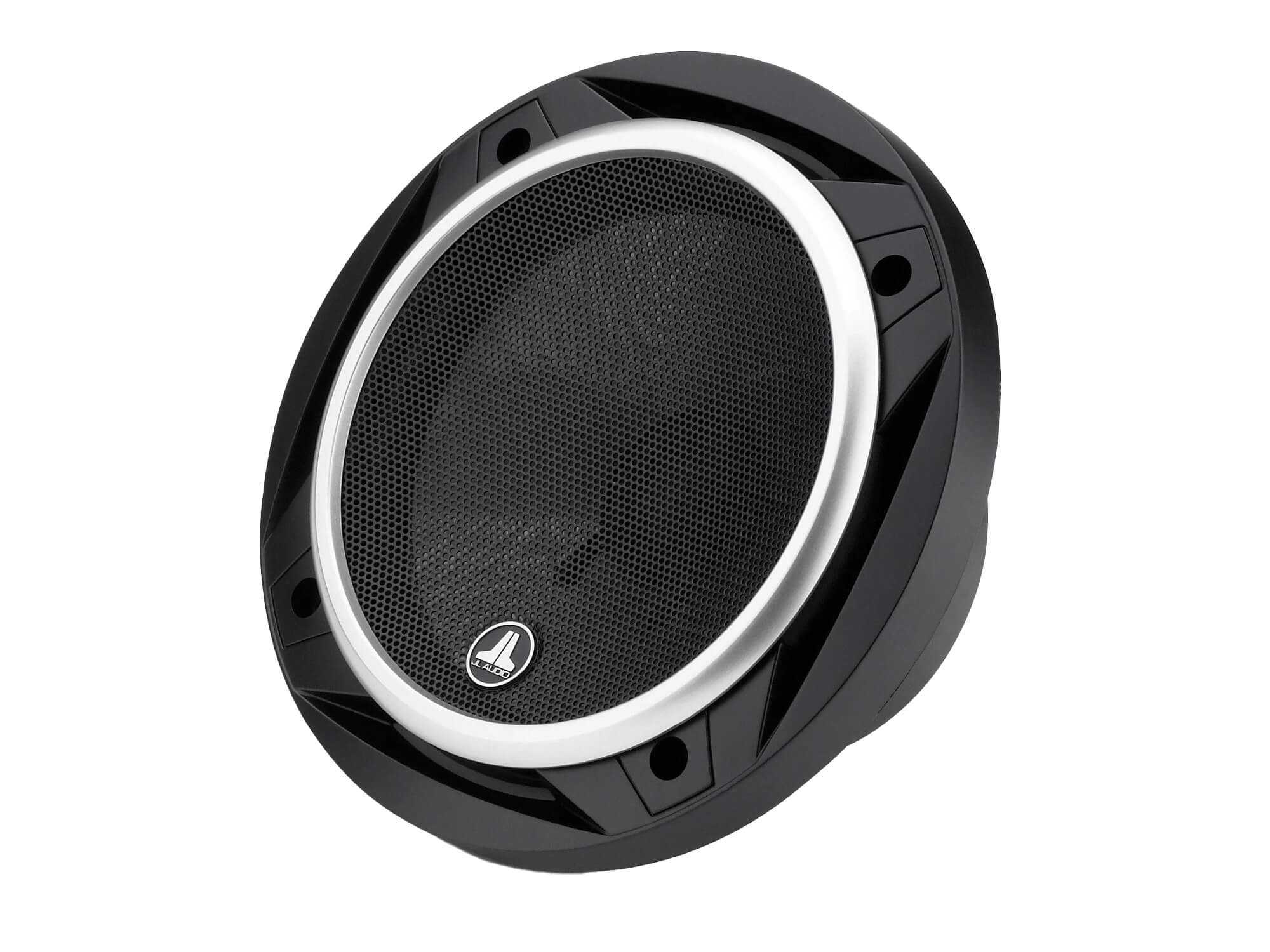

A woofer grille is included, consisting of a black grille tray with satin silver accent and a black steel mesh grille with an electroformed JL Audio logo.
Dimensions
- Frame Outer Diameter* (A): 6.21 in / 158 mm
- Grille Tray Outer Diameter (B): 6.51 in / 163 mm
- Motor Outer Diameter (C): 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion (D): N/A
- Frontal Grille Protrusion** (E): 0.91 in / 23 mm
- Mounting Hole Diameter (F): 5.00 in / 127 mm
- Mounting Depth (G): 2.38 in / 60 mm
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
Technical Specifications
- Continuous Power Handling: 60 Watts
- Recommended Amp Power: 15 - 100 Watts per channel (RMS)
- Efficiency: 90.5 dB @ 1W/1m
- Nominal Impedance: 4 ohm
- Frequency Response: 59 Hz - 22 KHz ± 3 dB
