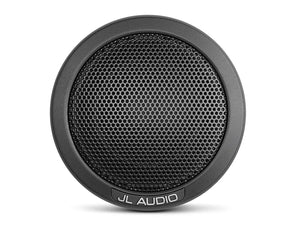

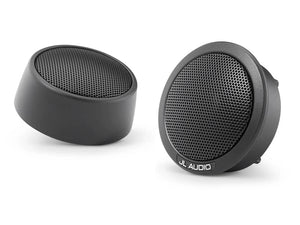

JL Audio C6-100ct - 25mm Component Tweeters
£169.00 – £388.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The JL Audio C6-100ct component tweeter benefits from vast speaker design experience and advanced modeling systems of JL Audio.
Ideal for active systems, the C6-100ct component tweeter features an edge-driven, pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping. A neodymium motor and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.
Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, JL Audio recommend a high-quality tuning digital signal processor (DSP), such as the JL Audio TwK® DSP or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalisation, delay and crossover filters will ensure optimal in-vehicle performance.
C6-100ct Component Tweeter Features:
- Edge-driven pure-silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
- Neodymium motor delivers high magnetic flux from a compact motor design
- Ferrofluid cooling and damping improves reliability and response smoothness

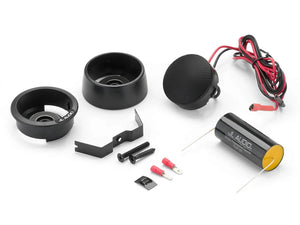

- Includes surface and flush-mount fixtures
Design Bandwidth:
- With 48 dB/octave filters: 3-21 kHz
- With 24 dB/octave filters: 4-21 kHz
- With 12 dB/octave filters: 5-21 kHz
Technical Specifications
- Continuous Power Handling (RMS): 75 W
- Recommended Amplifier Power (RMS): 25 - 100 W / Ch.
- Nominal Impedance: 4 Ω
- Frequency Response: 3 kHz - 21 KHz ± 3 dB
- Voice Coil Resistance (Re): 3.20 Ω
- Free Air Resonance (Fs): 1500 Hz
- Reference Efficiency (no): 0.602%
- Efficiency: 90 dB @ 1W / 1m - 96 dB @ 1W / 0.5m
- Sensitivity: 93 dB @ 2.83V / 1m
