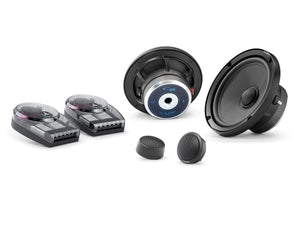

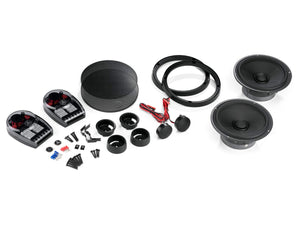

JL Audio C6-650 - 6.5 Inch Component Speakers

The JL Audio C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.

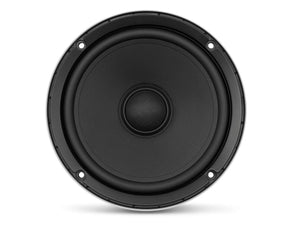

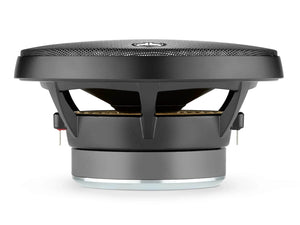

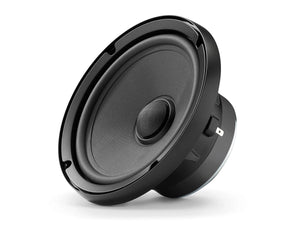

Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5" (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimised, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.

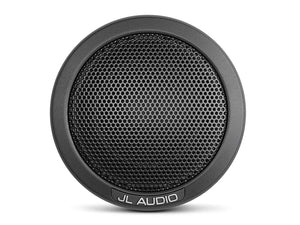

The 1" (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimise the possibility of tweeter failure.

C6 Woofer - Features

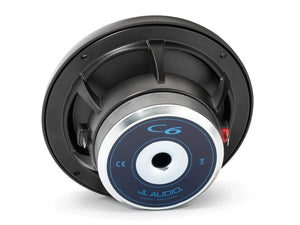

• Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
• Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
• Center cap designed to optimise the high-frequency response of the woofer for seamless transition to a tweeter’s response
• Oversized voice coil for extended power handling capability, minimising thermal compression and distortion at higher listening levels
• Cast alloy frame with our Elevated Frame Cooling feature

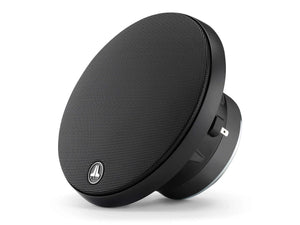

• Includes fine mesh grilles

C6 Tweeter - Features

• Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
• Neodymium motor delivers high magnetic flux from a compact motor design
• Ferrofluid cooling and damping improves reliability and response smoothness

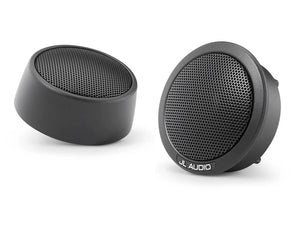

• Includes surface- and flush-mount fixtures

Technical Specifications

• Continuous Power Handling: 100 Watts (RMS)
• Recommended Amplifier Power: 25 - 150 W / Ch (RMS)
• Frequency Response: 53 Hz - 21 KHz (± 3 dB)
• Efficiency @ 1W/1m: 87.37 dB @ 1W/1m
• Nominal Impedance: 4 ohms

Further Information

JL Audio C6-650 - User Manual (PDF)
