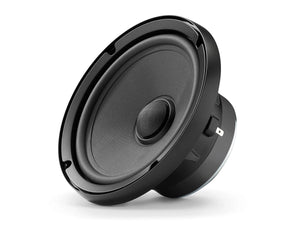

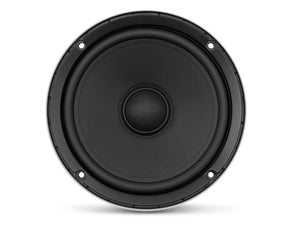

The JL Audio C6-650cw component woofer benefits from vast woofer design experience and advanced modeling systems of JL Audio.
Ideal for active systems, the C6-650cw component woofer features a proprietary cast alloy frame outfitted with JL Audio's Elevated Frame Cooling™ technology and a DMA-optimised motor system to generate outstanding midbass impact with ultralow distortion.
Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, JL recommend a high-quality tuning digital signal processor, such as the JL Audio TwK® DSP, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalisation, delay and crossover filters will ensure optimal in-vehicle performance.
C6-650cw Component Woofer Features:

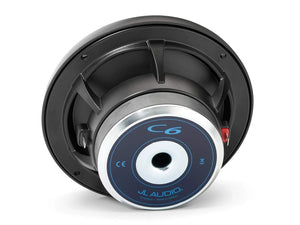

- Forged and machined motor plates with DMA-optimised geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
- Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
- Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
- Oversized voice coil for extended power handling capability, minimising thermal compression and distortion at higher listening levels

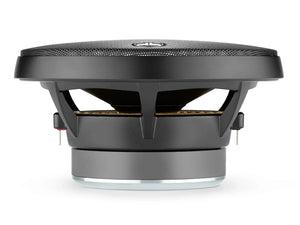

- Cast alloy frame with our Elevated Frame Cooling feature

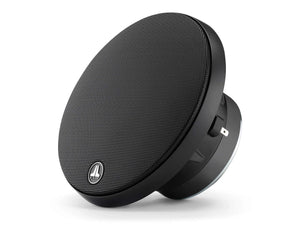

- Includes fine mesh grille
Design Bandwidth:
- With 48 dB/octave filters: 55 Hz-6 kHz
- With 24 dB/octave filters: 65 Hz-6 kHz
- With 12 dB/octave filters: 80 Hz-6 kHz
Technical Specifications
- Continuous Power Handling (RMS): 100 W
- Recommended Amplifier Power (RMS): 25 - 150 W / Ch
- System Efficiency: 87.37 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 55 Hz - 6 KHz ± 3 dB
