JL Audio CF-275mt - 2.75 Inch Coaxial Speakers
£169.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.

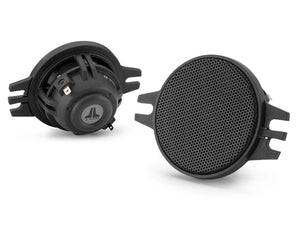

At the core of the JL Audio CF-275mt mid-tweeter is a proprietary, 2.75" (70 mm) composite frame and a DMA-optimised motor system. An ultralight, fiber-reinforced pulp cone with a custom "S" roll surround delivers excellent efficiency and extended high-frequency response.

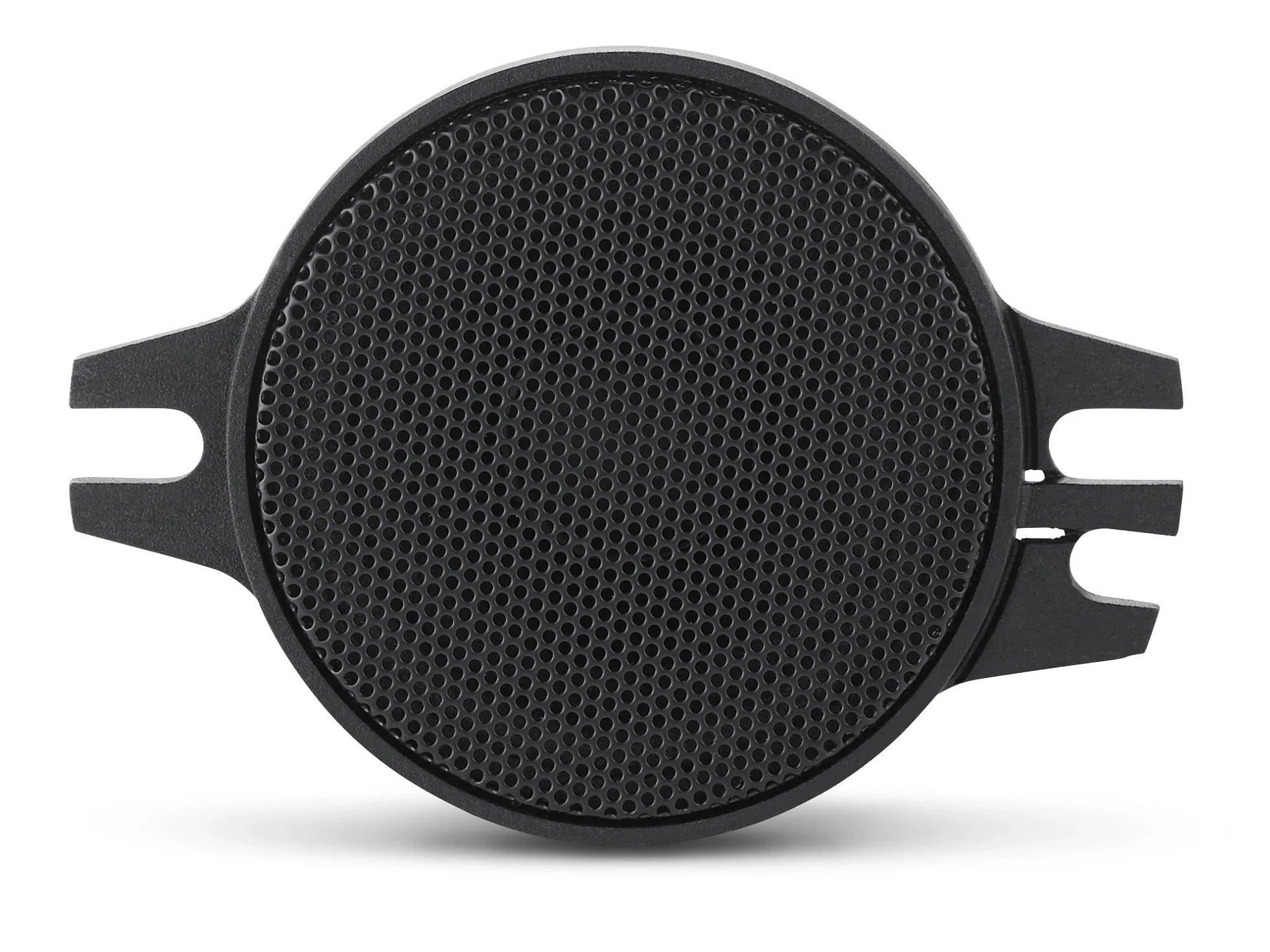

A flat, progressive-roll spider ensures linear compliance, while the neodymium motor packs astonishing energy from an ultracompact and lightweight package. Each speaker's glass-filled, high-temperature polymer frame is outfitted with insert-molded terminals and a low-profile perforated metal grille to easily fit behind factory trim while providing excellent UV protection in exposed dashboard locations.

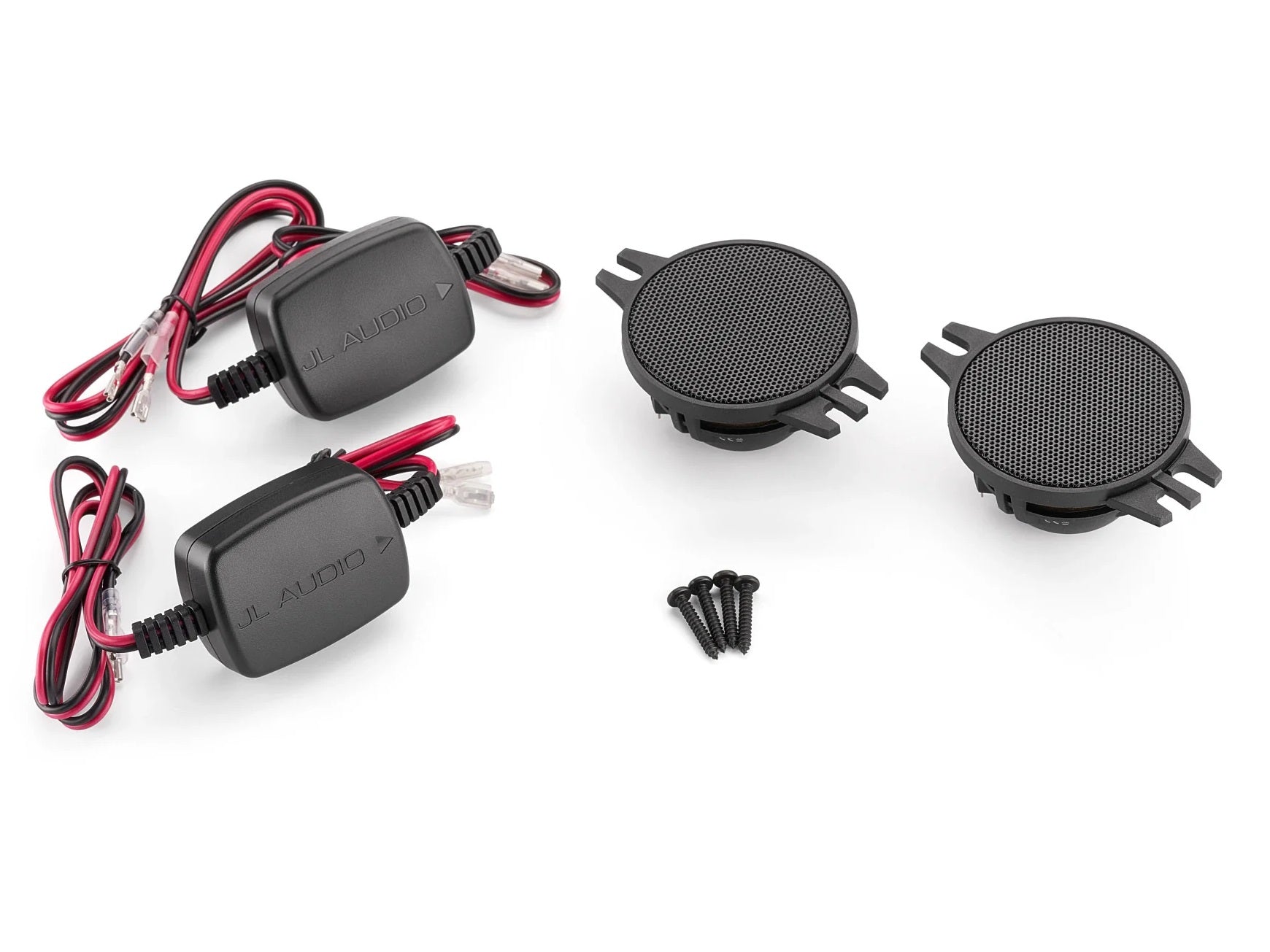

For passive applications as midtreble speakers, in-line, second order high-pass filters are included to enhance smoothness and improve power handling. CF-275mt speakers can also be used actively, as true midrange or mid-tweeter drivers to create outstanding two-way or three-way systems.
For active applications, we recommend a high-quality digital signal processor (DSP), such as the JL Audio TwK® DSP or a VXi amplifier with built-in DSP, and the recommended bandwidths below.
Design Bandwidth:
- With 24 dB/octave filters: 400 Hz-20 kHz
- With 12 dB/octave filters: 500 Hz-20 kHz
Technical Specifications
- Continuous Power Handling (RMS): 30 W
- Recommended Amplifier Power (RMS): 10 - 40 W / Ch.
- System Efficiency: 82.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 450 Hz - 20 KHz ± 3 dB
