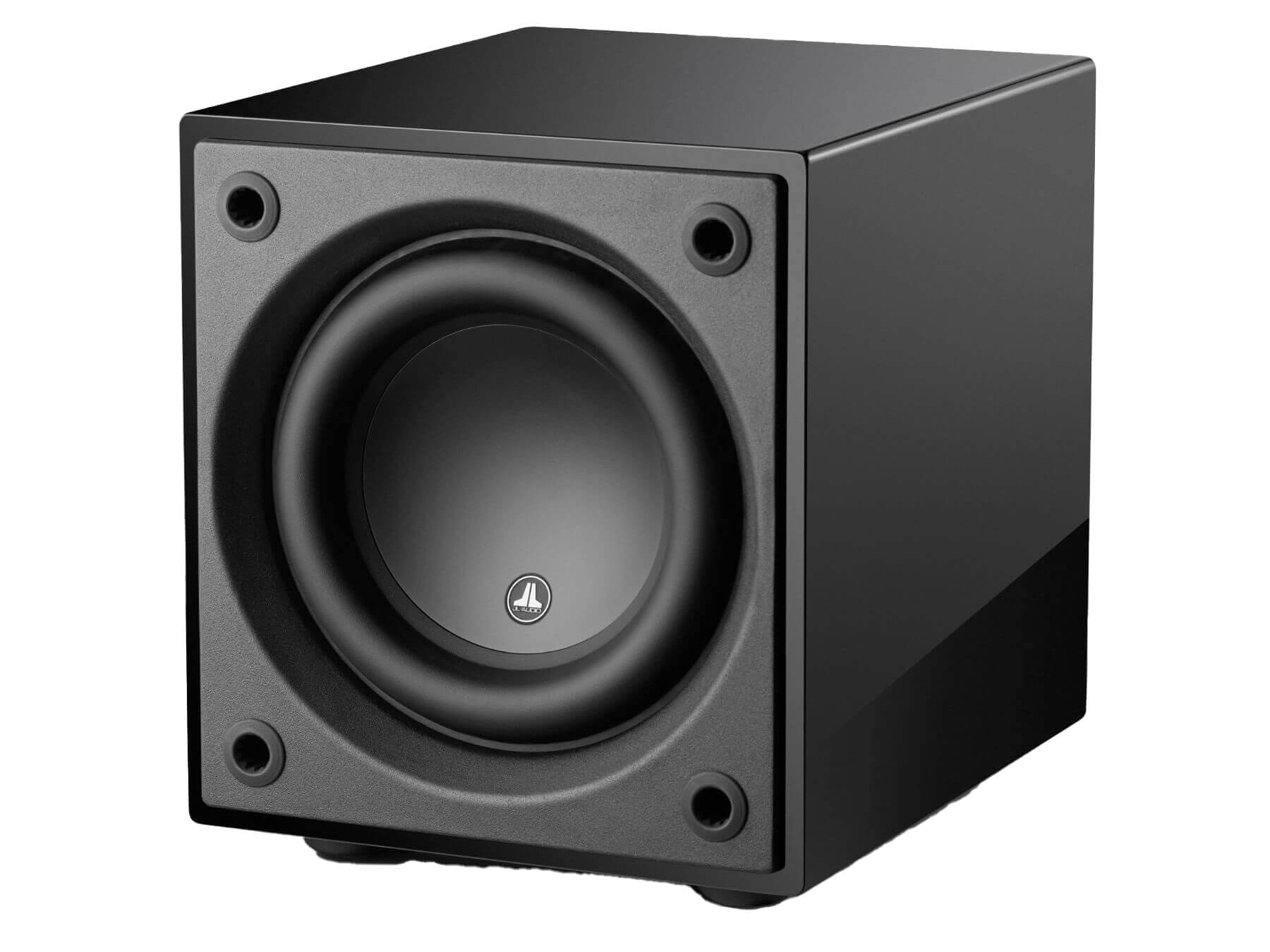

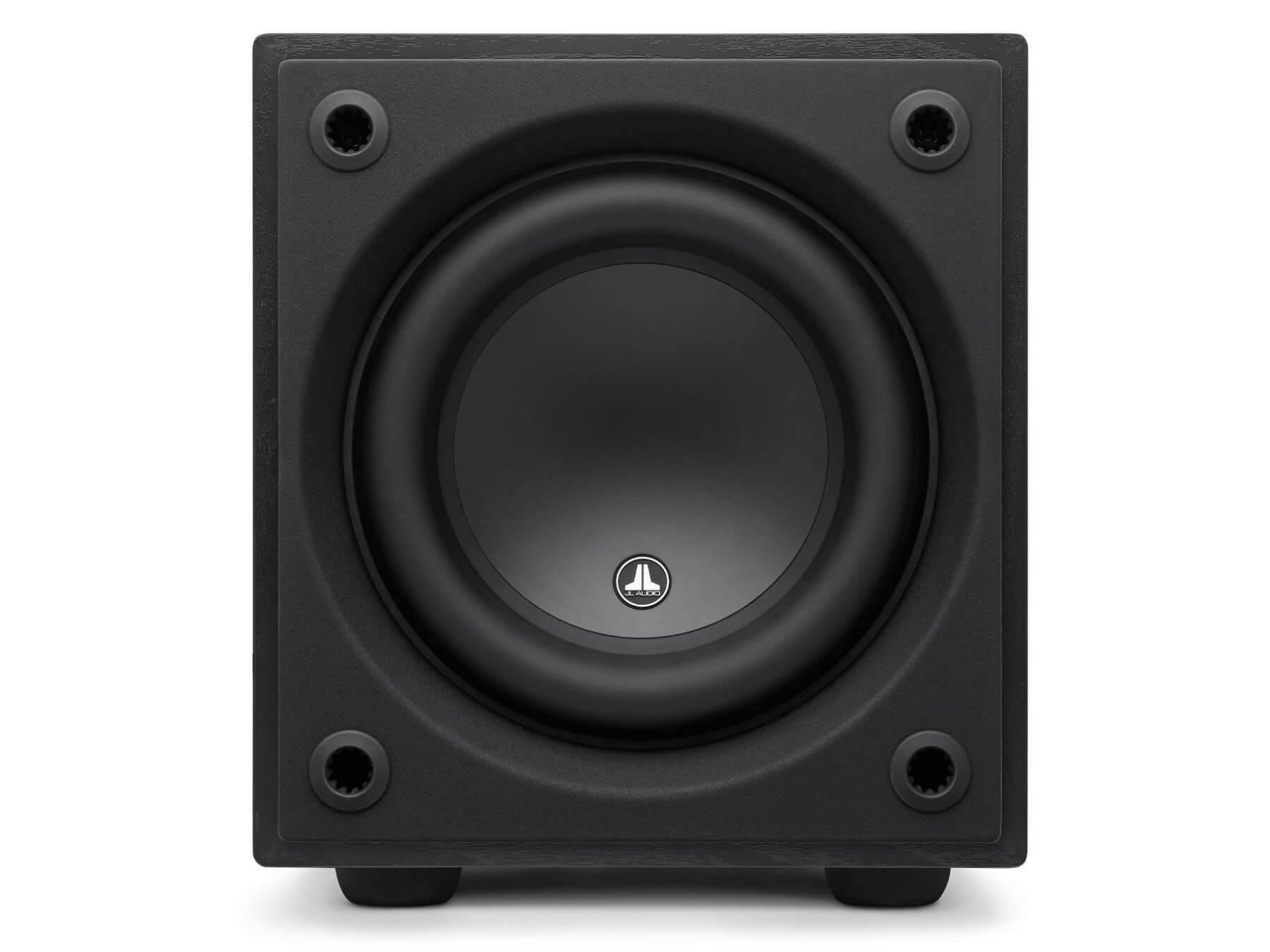

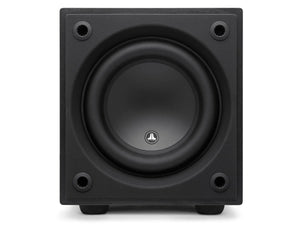

The JL Audio Dominion d108 - Home Audio Subwoofer is purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion amplifiers utilise an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

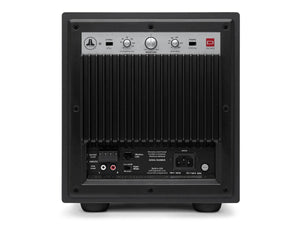

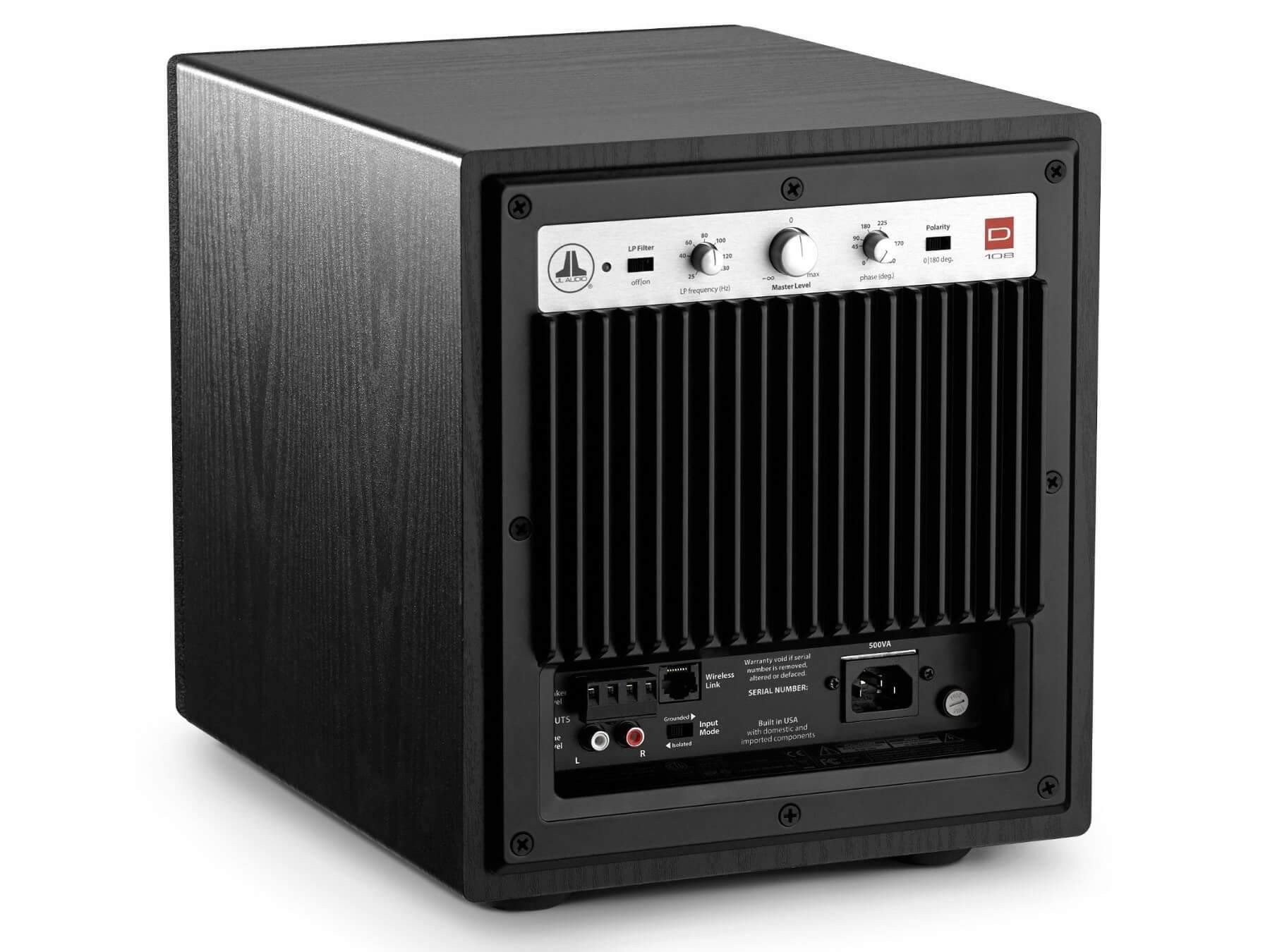

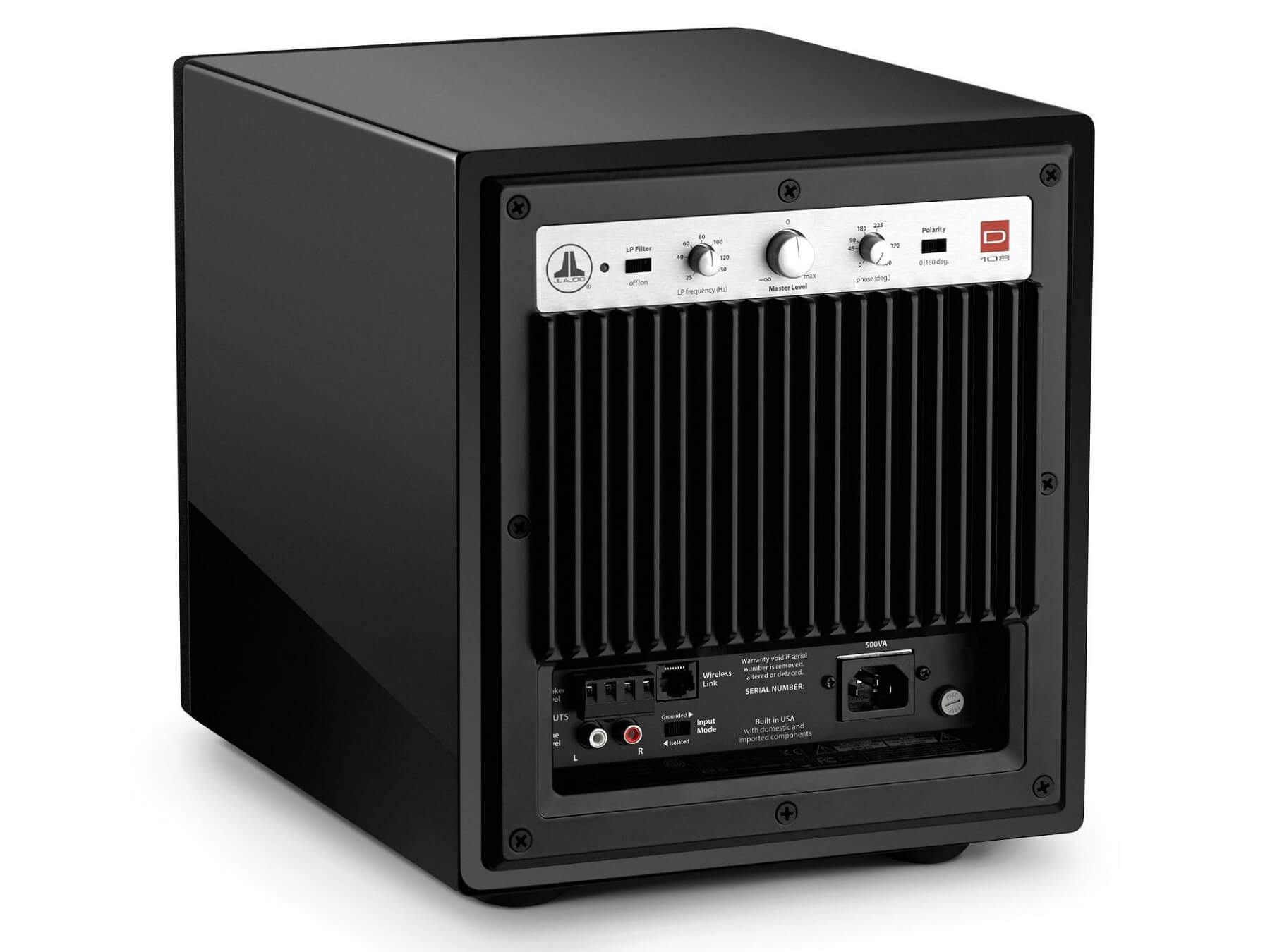

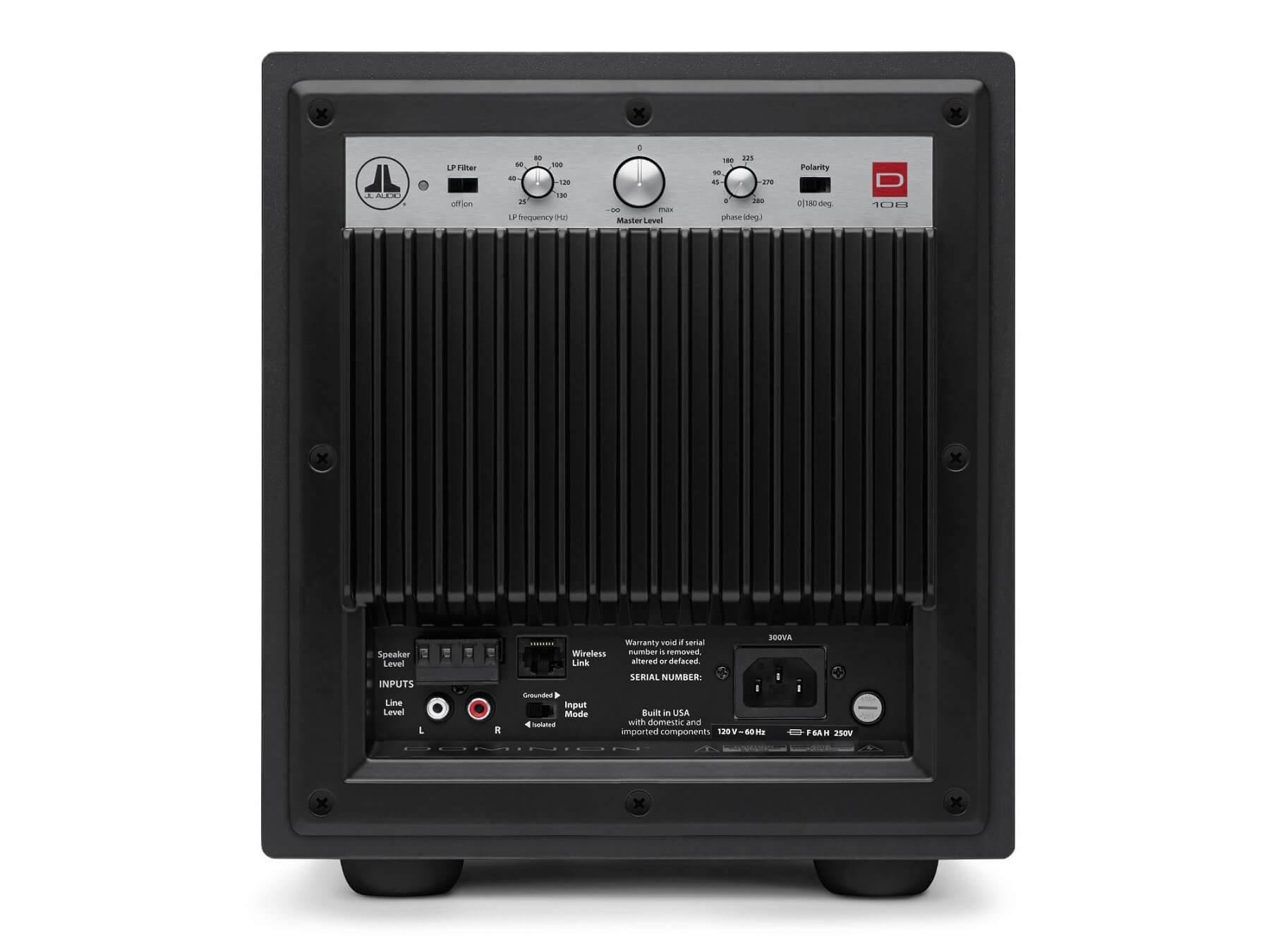

With a host of signal processing features included, Dominion powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion almost anywhere, up to 100 feet (30 meters) away from your source unit.

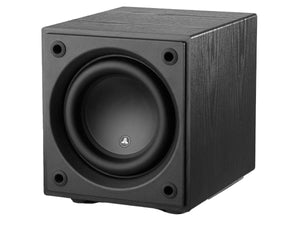

To contain the immense pressures created by the Dominion driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques.
|Frequency Response (anechoic)||
31 - 112 Hz (±1.5dB)
-3 dB at 29 Hz / 119 Hz
-10 dB at 21 Hz / 143 Hz
|Effective Piston Area (Sd)||32.18 sq in / 0.0208 sq m|
|Effective Displacement||80 cu in / 1.3 L|
|Amplifier Power||500 W RMS short-term|
|Unbalanced Inputs||Stereo or Mono (two RCA jacks)|
|Width (W)||10 in / 254 mm|
|Height (H)||11.37 in / 289 mm|
|Depth (D)||13.23 in / 336 mm|
|Net Weight||26.4 lb / 12 kg|
