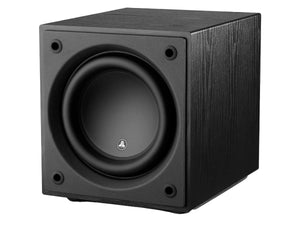

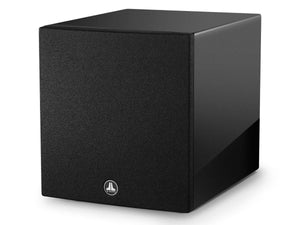

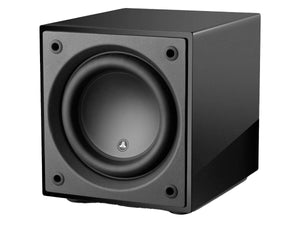

The JL Audio Dominion d110 - Home Audio Subwoofer combines a state-of-the-art JL Audio subwoofer driver and electronics/amplifier package within a highly optimized enclosure to deliver an exceptional listening experience in your home theater or home audio system.
The subwoofer driver in the Dominion subwoofer system is capable of outstanding linear excursion without distress or audible distortion. This purpose-engineered driver enables the Dominion subwoofer to reproduce powerful low-frequency events with stunning impact and outstanding accuracy. The Dominion drivers offer peak-to-peak excursion capabilities well in excess of 2.5 inches (63 mm - d108), and 2.7 inches (68 mm - d110) to comfortably handle the dynamics of the most demanding program material.
To get the most from this long excursion driver platform, the Dominion incorporates a precisely engineered switching amplifier. The Dominion amplifiers are capable of unclipped output voltages equivalent to 500 watts (d108), and 750 watts (d110) of RMS power when referenced to the nominal loudspeaker impedance, allowing us to take full advantage of each driver’s full excursion envelope.
The beautiful cabinet enclosing the workings of the Dominion is also the result of careful engineering. To contain the pressures created by the Dominion driver, solid, CNC-cut, MDF material is used with extensive internal bracing features and advanced assembly techniques.

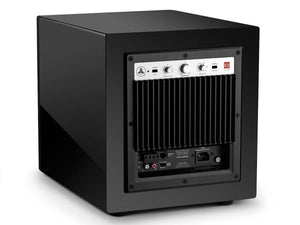

The Dominion subwoofers also include an on-board low-pass active crossover, a polarity switch, and phase control to aid in achieving an optimal acoustic transition between the subwoofer(s) and main speakers. Inputs are via a pair of line level stereo RCA inputs or via a removable plug for speaker level inputs.
|Frequency Response (anechoic)||
27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
|Effective Piston Area (Sd)||48.71 sq in / 0.0314 sq m|
|Effective Displacement||127 cu in / 2.08 L|
|Amplifier Power||750 W RMS short-term|
|Unbalanced Inputs||Stereo or Mono (two RCA jacks)|
|Width (W)||12 in / 305 mm|
|Height (H)||13.4 in / 340 mm|
|Depth (D)||15.86 in / 403 mm|
|Net Weight||38.2 lb / 17.3 kg|
