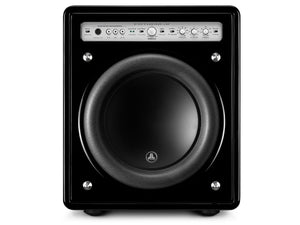

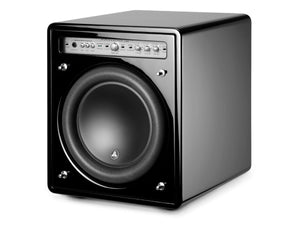

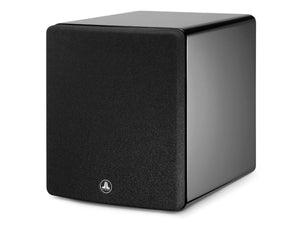

The JL Audio Fathom f110v2 Home Audio Subwoofer is fully capable of delivering stellar performance in smaller spaces ad is the most compact unit in the Fathom Range. The combination of an ultra-long throw W7 10-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.
Because it is built with the same driver and amplifier technology as the flagship JL Audio Gotham, the f110v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

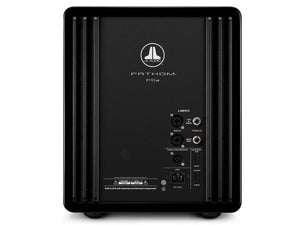

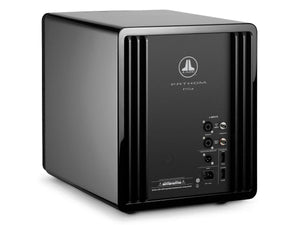

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
Technical Specifications
Frequency Response (anechoic) |
27 - 111 Hz (±1.5dB) -3 dB at 25 Hz / 120 Hz -10 dB at 19 Hz / 155 Hz |
Effective Piston Area (Sd) | 60 sq in / 0.0387 sq m |
Effective Displacement | 160 cu in / 2.6 L |
Amplifier Power | 1100W RMS short-term |
Unbalanced Inputs | Stereo or Mono (two RCA jacks) |
Balanced Inputs | Stereo or Mono (two female XLR jacks) |
Width (W) | 12.92 in / 328 mm |
Height (H) | 15.64 in / 397 mm |
Depth (D) | 17.27 in / 439 mm |
Net Weight | 69 lb / 31 kg |
