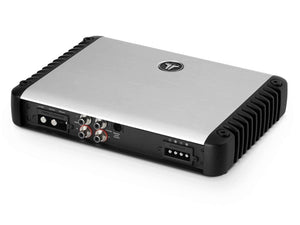

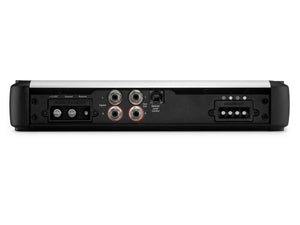

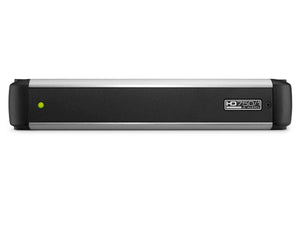

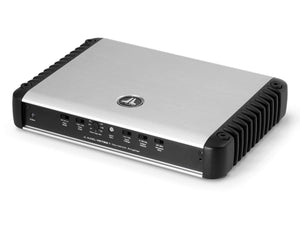

JL Audio HD750/1 - Monoblock Class D Amplifier

£699.99

Out of Stock

Out of Stock

Free Shipping Over £100 to United Kingdom

Product Details

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the JL Audio HD750/1 - Monoblock Class D Amplifier is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω - 750 W RMS x 1

@ 3 Ω - 750 W RMS x 1

@ 2 Ω - 750 W RMS x 1

@ 1.5 Ω - 750 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω - 750 W RMS x 1

@ 3 Ω - 750 W RMS x 1

@ 2 Ω - 750 W RMS x 1

@ 1.5 Ω - 750 W RMS x 1

Frequency Response 6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >500 / 50 Hz
Damping Factor @ 2 Ω >250 / 50 Hz
THD+N @ Rated Power <0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 1.93 in / 49 mm
  • Width (W): 10.74 in / 273 mm
  • Depth (D): 8.29 in / 211 mm
  • Net Weight: 6.6 lb / 2.99 kg

Further Information

JL Audio HD750/1 - Monoblock Class D Amplifier - User Manual
