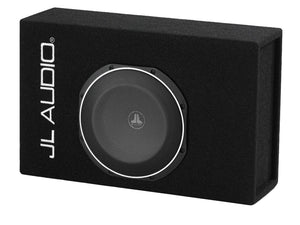

The JL Audio MicroSub CP110LG-TW1-2 Subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 10TW1 Subwoofer into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.

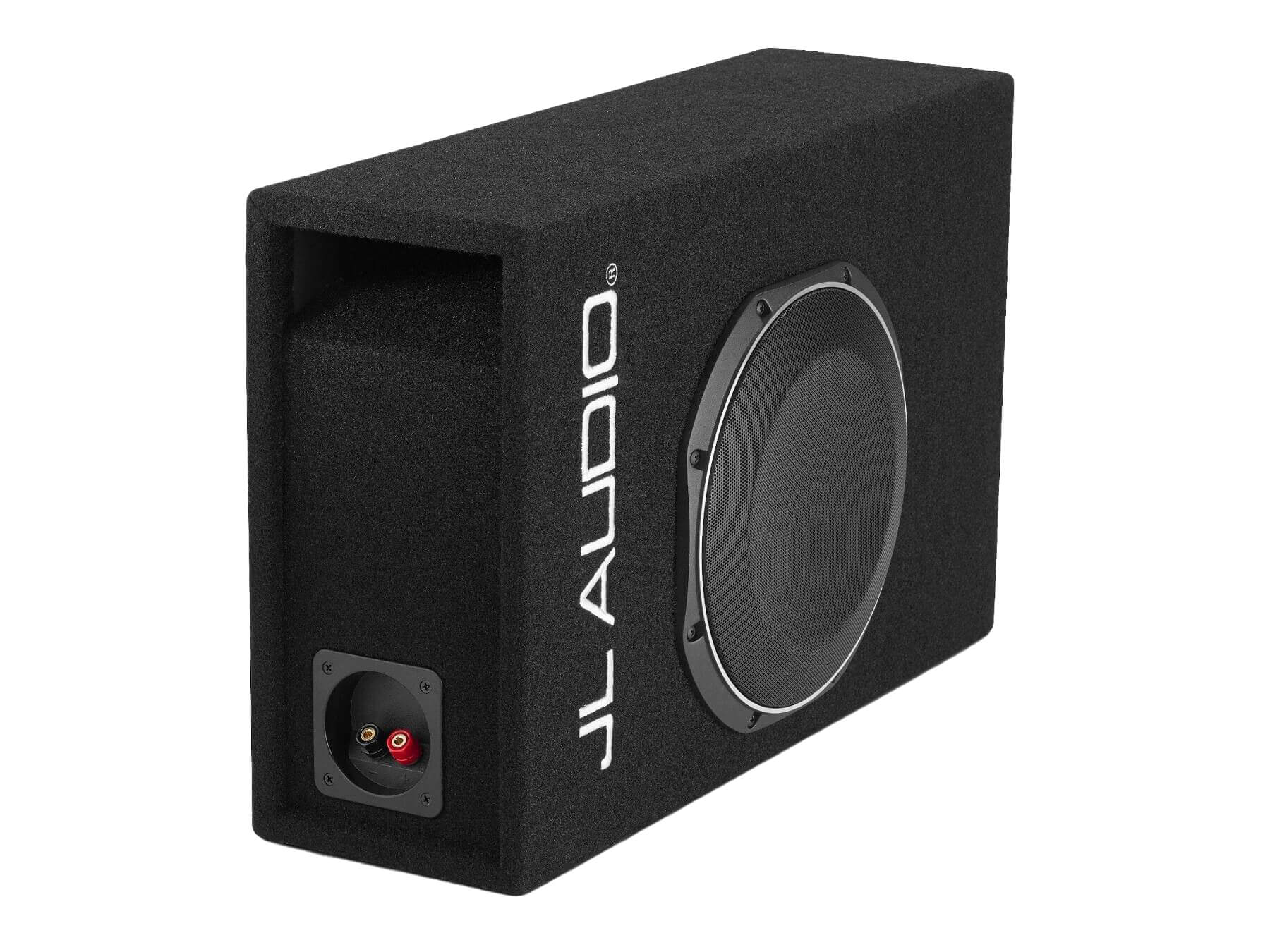

This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Technical Specifications
- Continuous Power Handling (RMS): 300 W
- System Nominal Impedance: 2 Ω
- Enclosure Type: Slot-ported, Low-profile
- Finish: Black carpet
- Grille Included: Black Steel Mesh
Dimensions
- External Width (W): 20.875 in / 530 mm
- External Height (H): 13.25 in / 337 mm
- External Depth (D1): 6.375 in / 162 mm
- Net Weight: 25.70 lb / 11.66 kg
