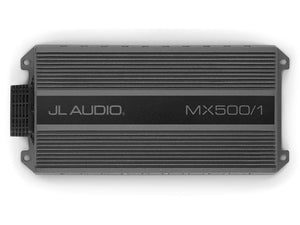

JL Audio MX500/1 - Monoblock Class D Amplifier
£499.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Engineered specifically for powersports applications, the JL Audio MX500/1 - Monoblock Class D Amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Technical Specifications
| Rated Continuous (RMS) Power @ 14.4 V |
@ 4 Ω - 300 W RMS x 1 @ 3 Ω - 400 W RMS x 1 @ 2 Ω - 500 W RMS x 1 @ 1.5 Ω - N/A |
| Rated Continuous (RMS) Power @ 12.5 V |
@ 4 Ω - 250 W RMS x 1 @ 3 Ω - 300 W RMS x 1 @ 2 Ω - 400 W RMS x 1 @ 1.5 Ω - N/A |
| Frequency Response | 20 Hz - 12 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >115 / 50 Hz |
| Damping Factor @ 2 Ω | >54 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Dimensions
- Height (H): 1.77 in / 45 mm
- Width (W): 9.33 in / 237 mm
- Depth (D): 4.50 in / 115 mm
Further Information
JL Audio MX500/1 - Monoblock Class D Amplifier - User Manual
