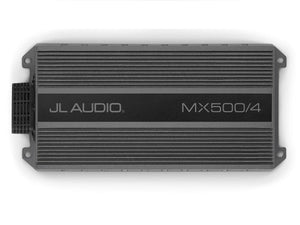

JL Audio MX500/4 - 4 Channel - Class D Amplifier

£389.99

Out of Stock

Out of Stock

Free Shipping Over £100 to United Kingdom

Product Details

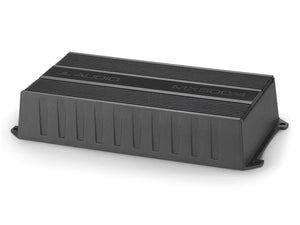

Engineered specifically for powersports applications, the JL Audio MX500/4 - 4 Channel - Class D Amplifier employs their high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

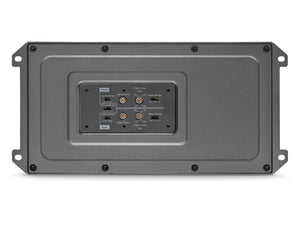

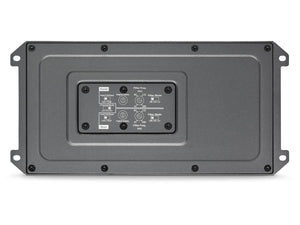

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω - 70 W RMS x 4

@ 2 Ω - 125 W RMS x 4

Bridged @ 4 Ω - 250 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω - 55 W RMS x 4

@ 2 Ω - 90 W RMS x 4

Bridged @ 4 Ω - 180 W RMS x 2

Frequency Response 20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >92 / 50 Hz
Damping Factor @ 2 Ω >43 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 1.77 in / 45 mm
  • Width (W): 9.33 in / 237 mm
  • Depth (D): 4.50 in / 115 mm

Further Information

JL Audio MX500/4 - 4 Channel - Class D Amplifier - User Manual
