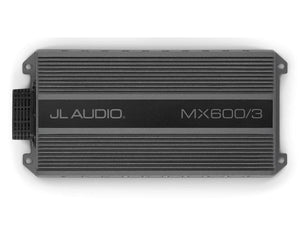

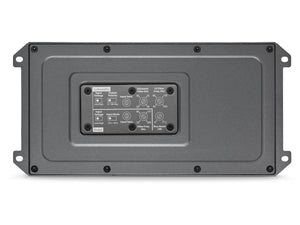

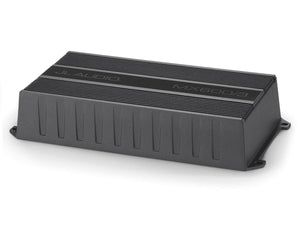

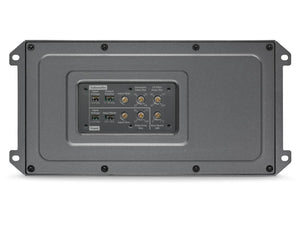

JL Audio MX600/3 - 3 Channel - Class D Amplifier

£429.99

In Stock
Free Shipping Over £100 to United Kingdom

Product Details

Engineered specifically for powersports applications, the JL Audio MX600/3 - 3 Channel - Class D Amplifier employs their high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω - 75 W RMS x 2

Main Channels @ 2 Ω - 100 W RMS x 2

Main Channels - Bridged @ 4Ω - 200 W RMS x 1

Subwoofer Channel @ 4 Ω - 250 W RMS x 1

Subwoofer Channel @ 3 Ω - 300 W RMS x 1

Subwoofer Channel @ 2 Ω - 400 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω - 50 W RMS x 2

Main Channels @ 2 Ω - 80 W RMS x 2

Main Channels - Bridged @ 4Ω - 100 W RMS x 1

Subwoofer Channel @ 4 Ω - 200 W RMS x 1

Subwoofer Channel @ 3 Ω - 250 W RMS x 1

Subwoofer Channel @ 2 Ω - 300 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Frequency Response 20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >92 / 50 Hz
Damping Factor @ 2 Ω >43 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofers Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 1.77 in / 45 mm
  • Width (W): 9.33 in / 237 mm
  • Depth (D): 4.50 in / 115 mm

Further Information

JL Audio MX600/3 - 3 Channel - Class D Amplifier - User Manual
