Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

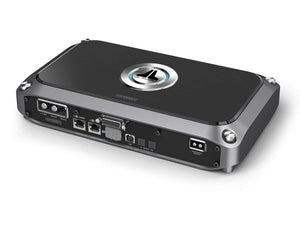

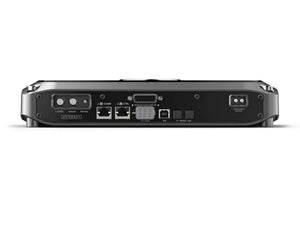

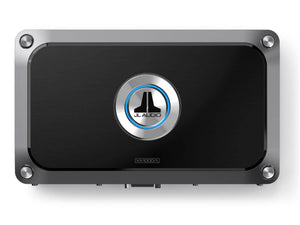

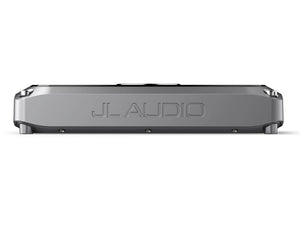

The JL Audio VX1000/1i - Monoblock Subwoofer Amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable
Technical Specifications
Rated Continuous (RMS) Power @ 14.4 V |
@ 4 Ω - 600 W RMS x 1 @ 3 Ω - 800 W RMS x 1 @ 2 Ω - 1000 W RMS x 1 @ 1.5 Ω - N/A |
Rated Continuous (RMS) Power @ 12.5 V |
@ 4 Ω - 500 W RMS x 1 @ 3 Ω - 650 W RMS x 1 @ 2 Ω - 800 W RMS x 1 @ 1.5 Ω - N/A |
Frequency Response | 12 Hz - 500 Hz (+0, -1dB) |
S/N Ratio, referred to highest rated power (Analog Inputs) | 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W (Analog Inputs) | 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to highest rated power (Digital Inputs) | 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W (Digital Inputs) | 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
Damping Factor @ 4 Ω | >400 / 50 Hz |
Damping Factor @ 2 Ω | >300 / 50 Hz |
THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Dimensions
- Height (H): 2.12 in / 54 mm
- Width (W): 11.32 in / 287 mm
- Depth (D): 6.62 in / 168 mm
- Net Weight: 6.55 lb / 2.95 kg
Further Information
JL Audio VX1000/1i - Monoblock Class D Amplifier with DSP - User Manual
