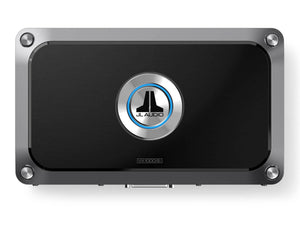

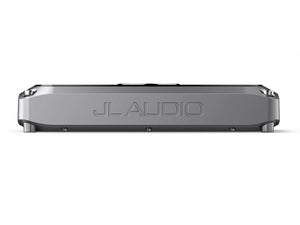

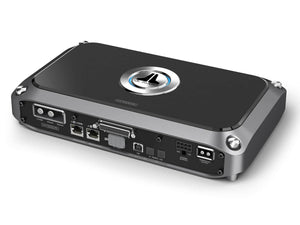

JL Audio VX1000/5i - 5 Channel Class D Amplifier with DSP

£1,299.99

In Stock
Free Shipping Over £100 to United Kingdom

Product Details

Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing second-generation NexD2™ amplifier technology, the JL Audio VX1000/5i - 5 Channel Class D Amplifier efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

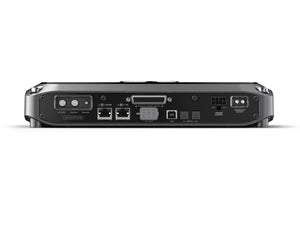

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimised low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

The amplifier includes Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable.

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω- 75 W RMS x 4

Main Channels @ 2 Ω- 100 W RMS x 4

Main Channels - Bridged @ 4Ω - 200 W RMS x 2

Subwoofer Channel @ 4 Ω - 400 W RMS x 1

Subwoofer Channel @ 3 Ω - 500 W RMS x 1

Subwoofer Channel @ 2 Ω - 600 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω: 60 W RMS x 4

Main Channels @ 2 Ω: 90 W RMS x 4

Main Channels - Bridged @ 4 Ω - 180 W RMS x 2

Subwoofer Channel @ 4 Ω- 360 W RMS x 1

Subwoofer Channel @ 3 Ω - 480 W RMS x 1

Subwoofer Channel @ 2 Ω - 600 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) >400 / 50 Hz
S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) >200 / 50 Hz
S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) <0.03% @ 4 Ω
S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) <0.05% @ 4 Ω
S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) Accepts up to 4 AWG wire
S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 60 A (AFS, AGU or MaxiFuse™)
Damping Factor @ 2 Ω >50 / 50 Hz
Damping Factor @ 4 Ω >150 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 2.12 in / 54 mm
  • Width (W): 11.32 in / 287 mm
  • Depth (D): 6.62 in / 168 mm
  • Net Weight: 6.45 lb / 2.93 kg

Further Information
