Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

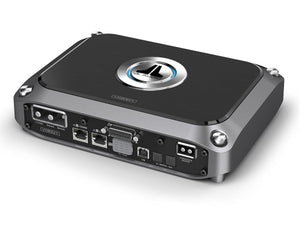

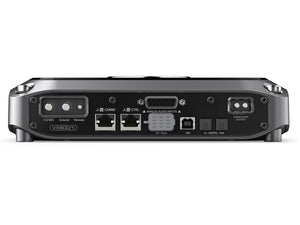

The JL Audio VX600/1i - Monoblock Class D Subwoofer Amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialised, low-frequency version of NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
The amplifier includes Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable.
Technical Specifications
Rated Continuous (RMS) Power @ 14.4 V |
@ 4 Ω - 400 W RMS x 1 @ 3 Ω - 500 W RMS x 1 @ 2 Ω - 600 W RMS x 1 @ 1.5 Ω - N/A |
Rated Continuous (RMS) Power @ 12.5 V |
@ 4 Ω - 300 W RMS x 1 @ 3 Ω - 400 W RMS x 1 @ 2 Ω - 500 W RMS x 1 @ 1.5 Ω - N/A |
Frequency Response | 12 Hz - 500 Hz (+0, -1dB) |
S/N Ratio, referred to highest rated power (Analog Inputs) | 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W (Analog Inputs) | 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to highest rated power (Digital Inputs) | 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W (Digital Inputs) | 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
Damping Factor @ 4 Ω | >125 / 50 Hz |
Damping Factor @ 2 Ω | >125 / 50 Hz |
THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Dimensions
- Height (H): 2.12 in / 54 mm
- Width (W): 9.02 in / 229 mm
- Depth (D): 6.62 in / 168 mm
- Net Weight: 5.0 lb / 2.27 kg
Further Information
JL Audio VX600/1i - Monoblock Class D Amplifier with DSP - User Manual
