Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With second-generation NexD2™ technology, the JL Audio VX600/2i - 2 Channel Class D Amplifier with DSP outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

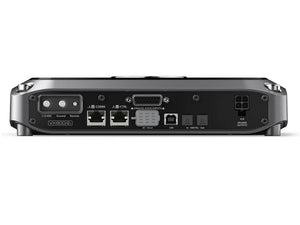

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilising DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
- Power Connector (for 4 AWG wire)
- Analog Input/Pre-Out Harness
- Speaker Output Harness
- 6 ft A/B USB Cable
|Rated Continuous (RMS) Power @ 14.4 V||
@ 4 Ω - 180 W RMS x 2
@ 2 Ω - 300 W RMS x 2
Bridged @ 4 Ω - 600 W RMS x 1
|Rated Continuous (RMS) Power @ 12.5 V||
@ 4 Ω - 140 W RMS x 2
@ 2 Ω - 225 W RMS x 2
Bridged @ 4 Ω - 450 W RMS x 1
|Frequency Response||12 Hz - 24 kHz (+0, -1dB)|
|S/N Ratio, referred to highest rated power (Analog Inputs)||99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W (Analog Inputs)||76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to highest rated power (Digital Inputs)||100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W (Digital Inputs)||78 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>100 / 50 Hz|
|Damping Factor @ 2 Ω||>50 / 50 Hz|
|THD+N @ Rated Power||<1% @ 2 Ω per Ch.|
|Input Voltage Range @ RCA Inputs||200 mV - 16 V RMS|
|Min.Copper Power / Ground Wire Gauge||4 AWG wire|
|Fuse Rating||50 A (AFS, AGU or MaxiFuse™)|
- Height (H): 2.12 in / 54 mm
- Width (W): 9.81 in / 250 mm
- Depth (D): 6.62 in / 168 mm
- Net Weight: 5.4 lb / 2.45 kg
