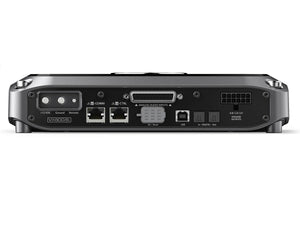

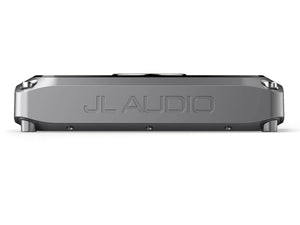

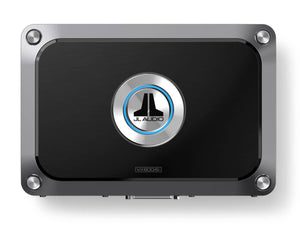

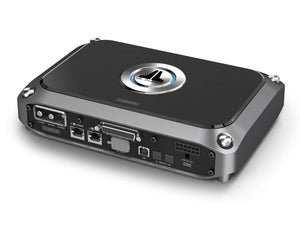

JL Audio VX600/6i - 6 Channel Class D Amplifier with DSP
£1,699.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With second-generation NexD2™ technology, the JL Audio VX600/6i - 6 Channel Class D Amplifier with DSP outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilising DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier Includes:
- Power Connector (for 4 AWG wire)
- Analog Input/Pre-Out Harness
- Speaker Output Harness
- 6 ft A/B USB Cable
Technical Specifications
| Rated Continuous (RMS) Power @ 14.4 V |
@ 4 Ω - 75 W RMS x 6 @ 2 Ω - 100 W RMS x 6 Bridged @ 4 Ω - 200 W RMS x 3 |
| Rated Continuous (RMS) Power @ 12.5 V |
@ 4 Ω - 60 W RMS x 6 @ 2 Ω - 90 W RMS x 6 Bridged @ 4 Ω - 180 W RMS x 3 |
| Frequency Response | 12 Hz - 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >100 / 50 Hz |
| Damping Factor @ 2 Ω | >50 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Dimensions
- Height (H): 2.12 in / 54 mm
- Width (W): 9.81 in / 250 mm
- Depth (D): 6.62 in / 168 mm
- Net Weight: 5.55 lb / 2.5 kg
Further Information
JL Audio VX600/6i - 6 Channel Class D Amplifier with DSP - User Manual
