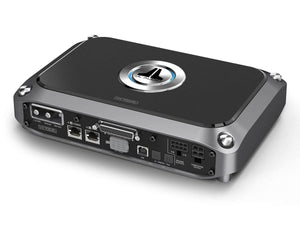

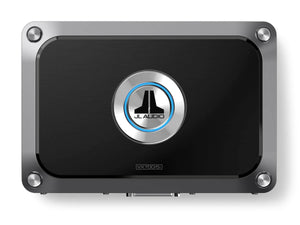

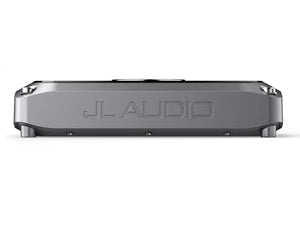

JL Audio VX700/5i - 5 Channel Class D Amplifier with DSP

£1,199.99

In Stock
Free Shipping Over £100 to United Kingdom

Product Details

Designed to simplify great audio, every VXi amplifier combines JL Audio's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing second generation NexD2™ amplifier technology, the JL Audio VX700/5i - 5 Channel Class D Amplifier efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

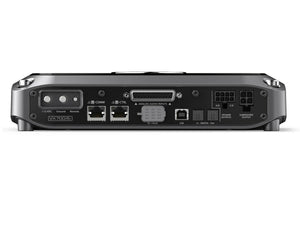

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilising DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimised low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier Includes:

  • Power Connector (for 4 AWG wire)
  • Analog Input/Pre-Out Harness
  • Speaker Output Harness
  • Subwoofer Output Harness
  • 6 ft A/B USB Cable

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω - 75 W RMS x 4

Main Channels @ 2 Ω - 100 W RMS x 4

Main Channels Bridged @ 4 Ω - 200 W RMS x 2

Subwoofer Channel @ 4 Ω - 180 W RMS x 1

Subwoofer Channel @ 3 Ω - 240 W RMS x 1

Subwoofer Channel @ 2 Ω - 300 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω - 75 W RMS x 4

Main Channels @ 2 Ω - 100 W RMS x 4

Main Channels Bridged @ 4 Ω - 200 W RMS x 2

Subwoofer Channel @ 4 Ω - 180 W RMS x 1

Subwoofer Channel @ 3 Ω - 240 W RMS x 1

Subwoofer Channel @ 2 Ω - 300 W RMS x 1

Subwoofer Channel @ 1.5 Ω - N/A

Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >50 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 2.12 in / 54 mm
  • Width (W): 9.81 in / 250 mm
  • Depth (D): 6.62 in / 168 mm
  • Net Weight: 5.6 lb / 2.54 kg
