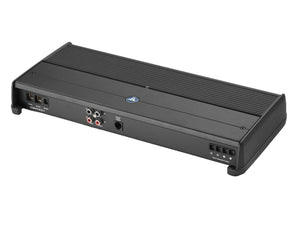

JL Audio XDM1000/1 - Monoblock Class D Amplifier

£899.00

In StockIn StockOut of Stock
VAT included. Shipping calculated at checkout.

Notify me when this product is available:

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

The JL Audio XDM1000/1 - Monoblock Class D subwoofer amplifier employs JL Audio's high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis.

The XDM1000/1 generates up to 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.

Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

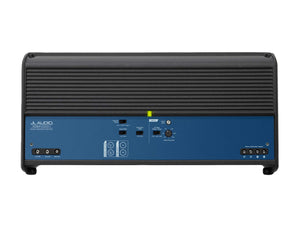

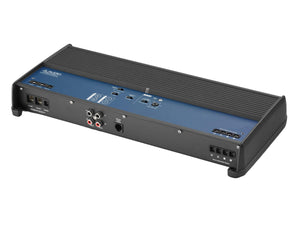

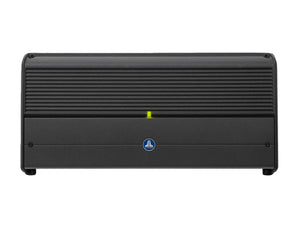

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Dimensions

  • Depth: 2.05 in / 52 mm
  • Height: 14.73 in / 374 mm
  • Width: 7.09 in / 180 mm

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 500 W RMS x 1
@ 3 Ω 650 W RMS x 1
@ 2 Ω 800 W RMS x 1
@ 1.5 Ω N/A
General Specifications
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power >1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s) Low-Pass only
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeat Function Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ No
Output Polarity Switch No
Remote Subwoofer Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control No
Pass-Through Preamp Output Buffered

Further Information

JL Audio XDM1000/1 - User Manual
