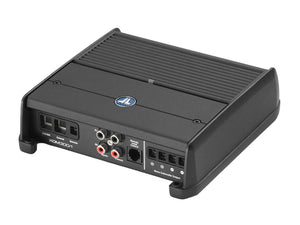

JL Audio XDM300/1 - Monoblock Class D Amplifier
£529.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The JL Audio XDM300/1 is a Monoblock Class D Car/Marine Subwoofer Amplifier with a rated power of 300 W x 1 @ 2 Ω and 200 W x 1 @ 4 Ω - 14.4V.
It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV’s (in a weather-tight compartment).
Designed for car or boat installations, the JL Audio XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

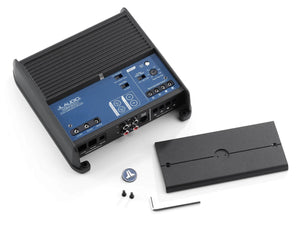

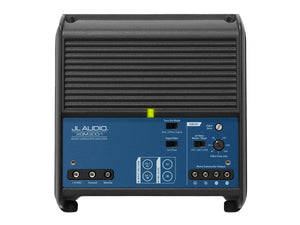

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Dimensions
- Depth: 7.09 in / 180 mm
- Height: 2.05 in / 52 mm
- Width: 6.85 in / 174 mm
Technical Specifications
| Rated Continuous (RMS) Power @ 14.4 V | |
|---|---|
| @ 4 Ω | 200 W RMS x 1 |
| @ 3 Ω | 250 W RMS x 1 |
| @ 2 Ω | 300 W RMS x 1 |
| @ 1.5 Ω | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 Ω | 160 W RMS x 1 |
| @ 3 Ω | 210 W RMS x 1 |
| @ 2 Ω | 270 W RMS x 1 |
| @ 1.5 Ω | N/A |
| General Specifications | |
| Frequency Response | 10 Hz - 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >120 / 50 Hz |
| Damping Factor @ 2 Ω | >60 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 8 AWG wire |
| Fuse Rating | 30 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | None |
| Bass Boost EQ | No |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
