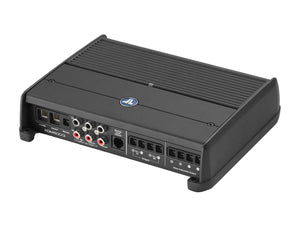

JL Audio XDM500/3 - 3-Channel Class D Amplifier
£699.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The JL Audio XDM500/3 is a 3-Channel Class D Car/Marine System Amplifier with a rated power of 75 W x 2 @ 4 Ω and 300 W x 1 @ 2 Ω - 14.4V.
Small enough to fit in just about any tight space application, the XDM500/3 is the perfect amplifier for a simple audiophile-grade, subwoofer / satellite system. With its three channels of versatile output, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system.
Suitable for car or boat installations, the JL Audio XDM500/3 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM500/3 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

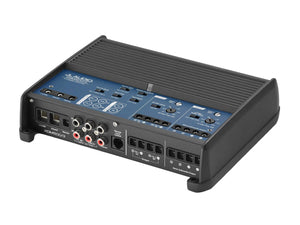

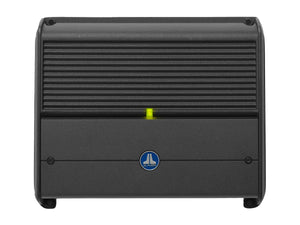

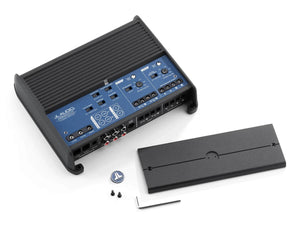

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Dimensions
- Depth: 7.09 in / 180 mm
- Height: 2.05 in / 52 mm
- Width: 8.52 in / 216 mm
Technical Specifications
| Rated Continuous (RMS) Power @ 14.4 V | |
|---|---|
| Main Channels @ 4 Ω | 75 W RMS x 2 |
| Main Channels @ 2 Ω | 100 W RMS x 2 |
| Main Channels - Bridged @ 4Ω | 200 W RMS x 1 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| Main Channels @ 4 Ω | 60 W RMS x 2 |
| Main Channels @ 2 Ω | 90 W RMS x 2 |
| Main Channels - Bridged @ 4Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
| General Specifications | |
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz - 1 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >120 / 50 Hz |
| Damping Factor @ 2 Ω | >60 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | >1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofers Channels) | >1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB / Octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | N/A |
| Filter Slope(s): Channels 3 & 4 (rear) | N/A |
| Filter Frequency Range: Channels 3 & 4 | N/A |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12/24 dB / Octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter: Subwoofer Channel | None |
| Remote Level Control | Optional HD-RLC or MHD-RLC (Water-Resistant) |
| Remote Level Modes | Sub Channel or All Channels |
| Channel Input Mode Switch | Yes (2 / 4 Ch) |
| Pass-Through Preamp Output | Buffered |
| Source Channel Selection for PreOuts | Yes (1 / 2 / Sum / Sub) |
