JL Audio XDM800/8 - 8-Channel Class D Amplifier
£1,149.00
In StockIn StockOut of StockVAT included.
Shipping calculated at checkout.
The JL Audio XDM800/8 is an 8-Channel Class D Full-Range Car/Marine Amplifier with a rated power of 100 W x 8 @ 2 Ω and 75 W x 8 @ 4 Ω - 14.4V.
Suitable for car or boat installations, the JL Audio XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.
Here are a few examples of how the XDM800/8 can be used:
- Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
- Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Ω
- Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4Ω, plus two 4Ω subwoofers with 200 W each
- Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4Ω, plus four 4Ω speakers with 75 W each
- Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4Ω + rear speakers with 75 W x 2
- Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each

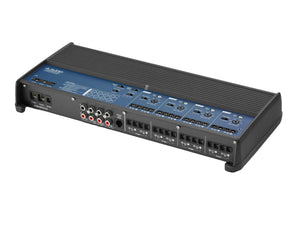

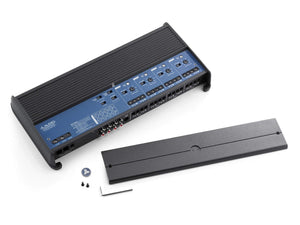

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Dimensions
- Depth: 7.09 in / 180 mm
- Height: 2.05 in / 52 mm
- Width: 14.73 in / 374 mm
Technical Specifications
| Rated Continuous (RMS) Power @ 14.4 V | |
|---|---|
| @ 4 Ω | 75 W RMS x 8 |
| @ 2 Ω | 100 W RMS x 8 |
| Bridged @ 4Ω | 200 W RMS x 4 |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 Ω | 60 W RMS x 8 |
| @ 2 Ω | 90 W RMS x 8 |
| Bridged @ 4Ω | 180 W RMS x 4 |
| General Specifications | |
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | >1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB / Octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional HD-RLC or MHD-RLC (Water-Resistant) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2 / 4 / 6 / 8 ch) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
