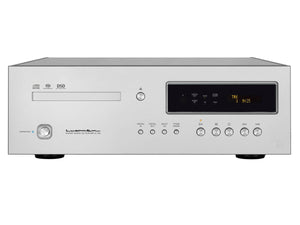

Luxman D-10X - CD Player

The Luxman D-10X CD player builds on the heritage of the acclaimed D-08u, adding more playback capabilities, the latest conversion technology, a robustly reinforced mechanism and a refined analog output stage.

Introducing LxDTM-i – the LUXMAN original Disc Transport Mechanism (improved). Here is the world premiere of the ROHM Semiconductor MUS-IC™ BD34301EKV digital-to-analog converter (as of May 2020).

Introducing ODNF-u – Only Distortion Negative Feedback (ultimate) – in a fully balanced output amplifier. Well-grounded in fundamental principles and endowed with the most advanced mechanical, digital and analog technology, the LUXMAN D-10X opens the curtain on the ultimate soundstage.

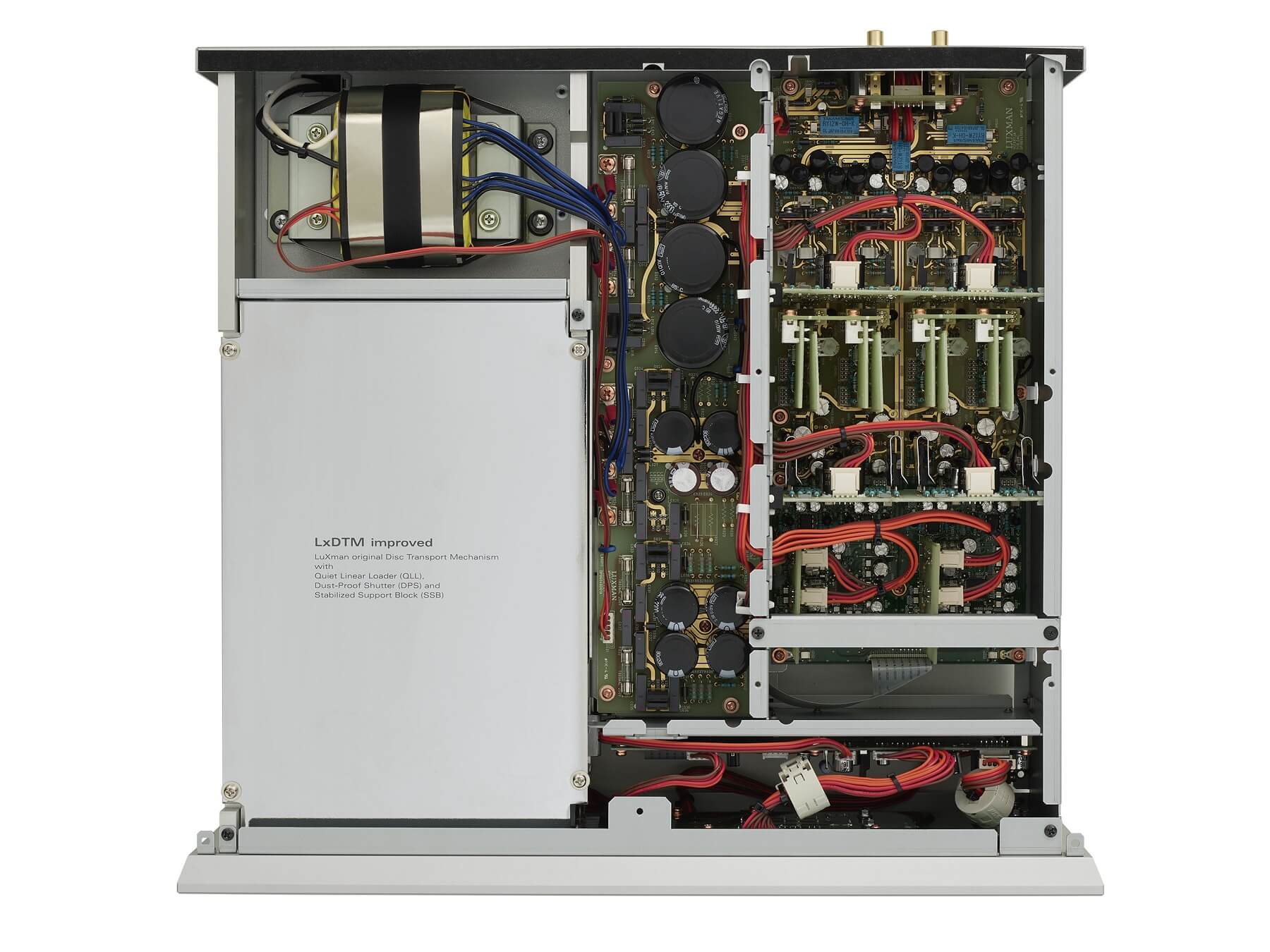

Latest LxDTM-i transport

To minimise even the slightest distortions triggered by vibration and resonance, Luxman upgraded the disc drive, creating the LxDTM-i – LUXMAN original Disc Transport Mechanism (improved).

The drive is enclosed in 8 mm thick aluminium sides that extend to the front and rear panels, plus a 5 mm thick steel top plate. For added protection, the physical mounting system forms an integrated structure that supports the side frame.

Together with an improved disc reading mechanism, the result is playback of an altogether higher order.

Advanced Digital Processing

The Luxman D-10X marks the debut of the world’s finest D/A converter, the MUS-IC™ BD34301EKV from ROHM Semiconductor. Used in dual mono configuration, these converters combine top-flight specs with an impressive suite of silicon-level refinements.

MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The player includes MQA technology, which enables you to play back MQA-CDs as well as MQA audio files up to 24-bit transferred via USB, optical and coaxial inputs.

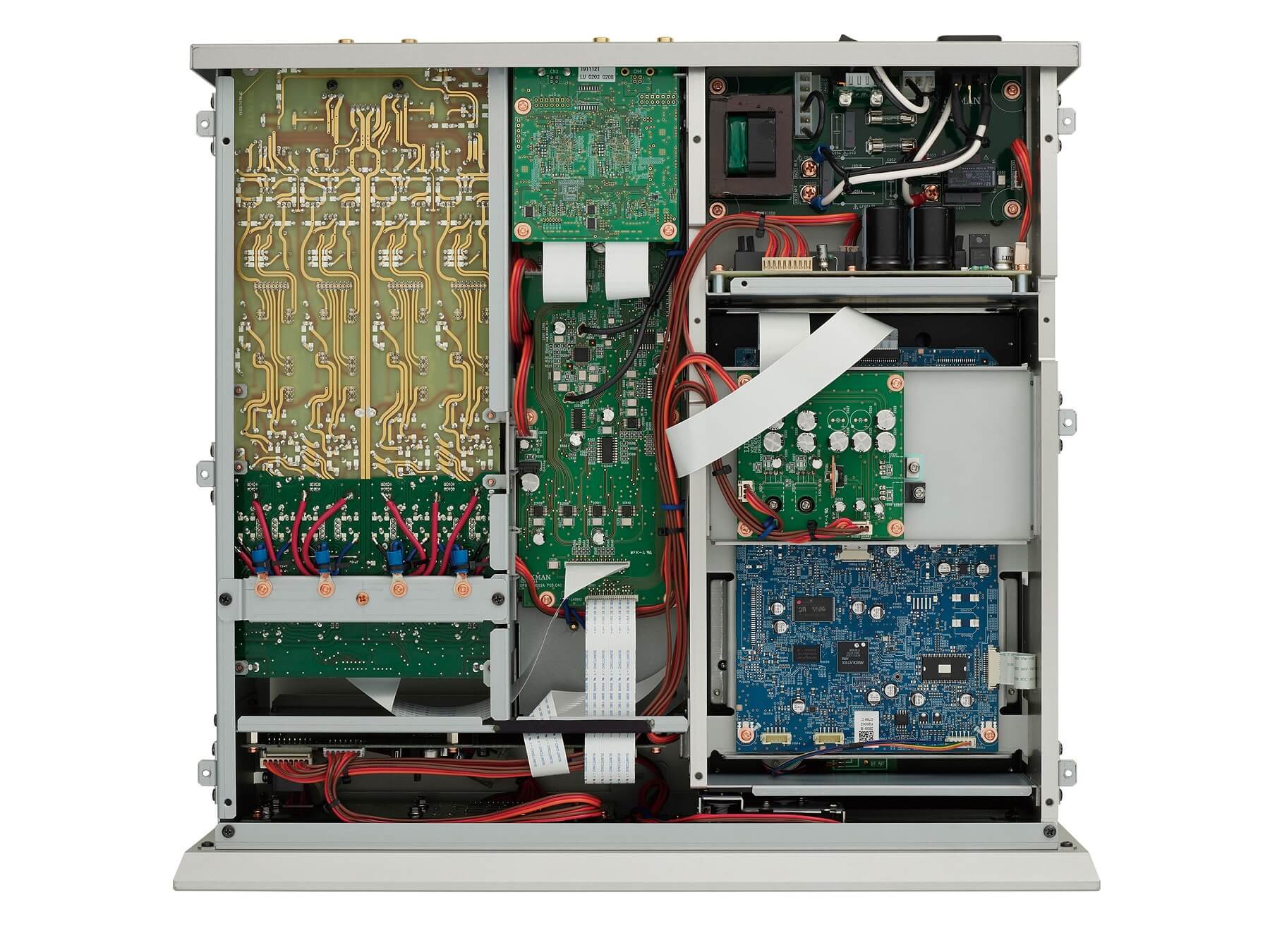

ODNF-u Balanced Analogue Circuit

Luxman's years of ODNF amplifier development have resulted in ODNF-u – Only Distortion Negative Feedback (ultimate) – which debuts on the D-10X. This fully balanced configuration maximises error detection accuracy, minimising distortion.

You’ll hear far greater expressive power with enhanced microdynamics across the audio spectrum, especially in the higher frequencies. The stage also achieves a natural and smooth waveform without the conventional output filters.

The secret is the tailored, gradual 1st order filter × 3 band processing inside the circuitry. Superb circuitry deserves a strong chassis. To protect the analog signal from changes in ground impedance and magnetic fields, the D-10X incorporates a composite, loop-less chassis. Well shielded, the chassis is also effective at blocking digital noise.

Technical Specifications

Further Information

Luxman D-10X - User Manual (PDF)
