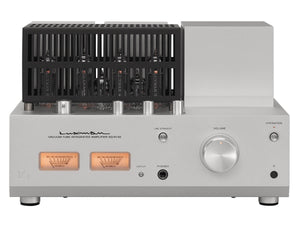

Part of Luxman’s NeoClassico II Series, the SQ-N150 is the latest heir to that proud tradition, delivering music reproduction of exceptional warmth and clarity.
Meticulous Valve Engineering
You’ll enjoy surpassingly detailed, open music reproduction thanks to the exceptional linearity of Luxman’s P-K split phase inversion circuit. Luxman married an input stage of two JJ Electronic ECC83 miniature double triodes to a push-pull output with four JJ Electronic EL84 pentodes.
And with their deep knowledge of tube design, they configured the SQ-N150 for consistent performance and long operating life. On paper, Luxman rate power output at 10 Watts + 10 Watts at 6 ohms. In practice, the sound is fit for the most demanding listeners.
Versatile Pre-amplifier

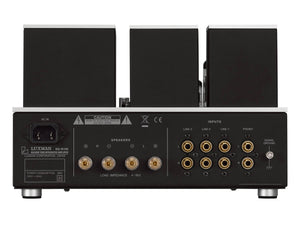

Luxman provides three line inputs and a phono section that accommodates both moving magnet and moving coil cartridges, so you don’t need to purchase a separate MC preamp. The RCA jacks are plated in gold and they are pitched at 18 mm to accommodate high-end cables.
For minimum crosstalk between left and right channels, Luxman used the same input selector IC as their top-of-the-line C-900u control amplifier. For ultimate sonic purity, the Line Straight mode can bypass the Bass, Treble and Balance controls. The headphone output jack is ideal for late night listening.
Technical Specifications
Rated Output | 10w + 10w (6Ω) |
---|---|
Input Sensitivity / Input Impedance | PHONO (MM): 3.0mV/47kΩ |
PHONO (MC): 0.33mV/100Ω | |
LINE: 180mV/47kΩ | |
Frequency Response | PHONO: 20Hz to 20kHz (±0.5dB) |
LINE: 20Hz to 80kHz (within -3.0dB) | |
Total Harmonic Distortion | 1% or less (1kHz, 10W/6Ω) |
S/N Ratio (IHF-A) | PHONO (MM): 84dB or more |
PHONO (MC): 64dB or more | |
LINE: 95dB or more | |
Circuit | Driver :P-K split phase inversion circuit |
Output :Pentode power tubes | |
Valves | ECC83×2, EL84×4 |
Power Supply | 230V~(50Hz) / 115V~(60Hz) |
Power Consumption | 98w |
External Dimensions | 297(W) x 188(H) x 251(D) mm |
Net Weight | 12.4 kg |
Accessories | Remote Control (RA-25A) - Power Cable |
