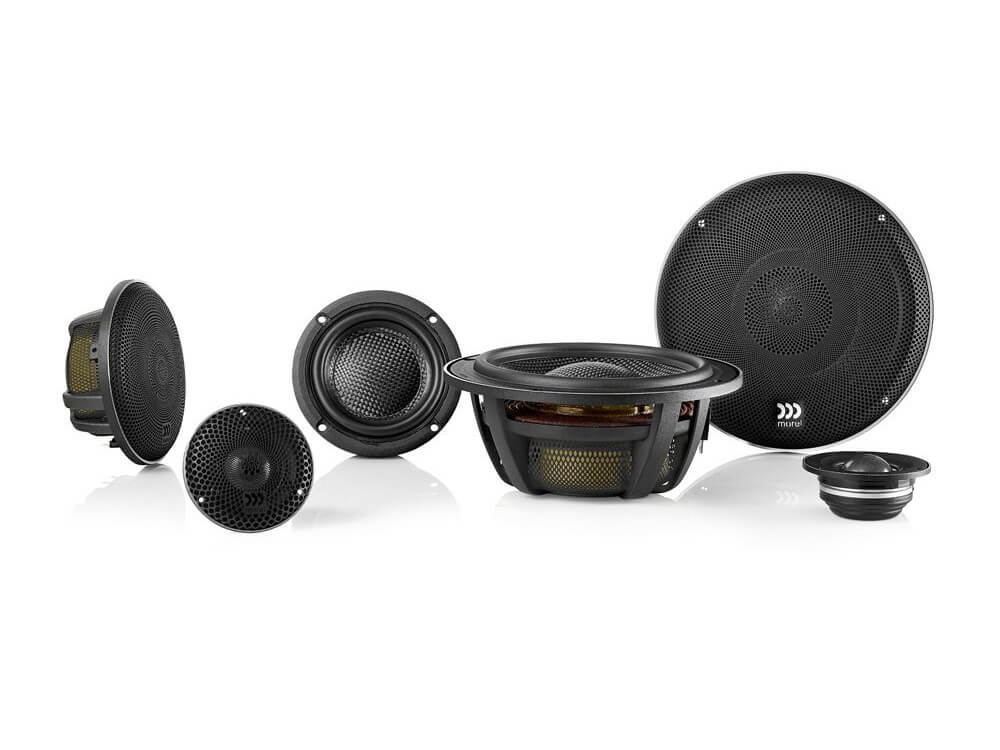

Morel Elate Carbon Pro 63a - 3-Way Active Component Speakers

£2,999.00 £2,399.20

In StockIn StockOut of Stock
VAT included. Shipping calculated at checkout.

Quantity: 3-Way Speaker Set

  • 3-Way Speaker Set
Back In Stock on - [19041994]
Out of Stock
Order in the next for delivery by hoursminutes

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

From the outset the Elate Carbon Pro was developed to be more than just a new set of speakers—it was designed to bring customers closer on their quest of an immersive musical experience that will leave you breathless.

The Elate Carbon Pro 63 Active System Consists of the following:

  • x2 - Elate Carbon Pro 6.5" Woofers
  • x2 - Elate Carbon Pro 3" Mid-Ranges
  • x2 - Elate Carbon Alto 28mm Tweeters
  • Grilles Included

Elate Carbon carries on the tradition of high power, high fidelity speaker systems, yet takes a leap forward in sound performance. The new Pro series is highlighted by the Elate Alto cavity-back tweeter – a high-resolution design borrowing its architecture from the Supremo Piccolo.

Combined with the new carbon fiber and Rohacell cone midrange and woofers, performance is breathtaking in detail, even at extreme volume levels.

No other speaker system fully envelops high-resolution and high power handling like the new Elate Carbon Pro.

Technical Specifications

Woofers - Elate MW6

  • Nominal Impedance (Ohm): 4
  • Power Handling Wrms: 180
  • Max Transient Power Handling Wrms: 1000
  • Sensitivity (2.83 V/1M) dB: 87
  • Frequency Response: 30 - 4000
  • Resonant Frequency Fs Hz: 45
  • Voice Coil Diameter mm (inch): 75 (3)
  • Voice Coil Height mm (inch): 14.50 (0.57)
  • Voice Coil Type/Former: Titanium
  • Voil Coil Wire: Hexatech Aluminium
  • DC Resistance (ohm): 3.6
  • Magnet System: Neodymium
  • Cone Type: Triple Layer Cone (TLC)
  • Cone Material: Carbon Fibre Composite
  • Unit Diameter mm (inch): 165 (6.5)
  • Net Weight Kg (lb): 1.18 (2.60)

Mid-Ranges - Elate MM3

  • Nominal Impedance (Ohm): 4
  • Power Handling Wrms: 120
  • Max Transient Power Handling Wrms: 400
  • Sensitivity (2.83 V/1M) dB: 87
  • Frequency Response: 90 - 6000
  • Resonant Frequency Fs Hz: 88
  • Voice Coil Diameter mm (inch): 54 (2.125)
  • Voice Coil Height mm (inch): 10 (0.4)
  • Voice Coil Type/Former: Aluminium
  • Voil Coil Wire: Hexatech Aluminium
  • DC Resistance (ohm): 3
  • Magnet System: Neodymium
  • Cone Type: Triple Layer Cone (TLC)
  • Cone Material: Carbon Fibre Composite
  • Unit Diameter mm (inch): 100 (3.90)
  • Net Weight Kg (lb): 0.38 (0.84)

Tweeters - Elate Alto

  • Nominal Impedance (Ohm): 6
  • Power Handling Wrms: 220
  • Max Transient Power Handling Wrms: 1000
  • Sensitivity (2.83 V/1M) dB: 91
  • Frequency Response: 1400 - 25000
  • Resonant Frequency Fs Hz: 900
  • Voice Coil Diameter mm (inch): 28 (1.125)
  • Voice Coil Former: Aluminium
  • Voil Coil Wire: Hexatech Aluminium
  • DC Resistance (ohm): 5.2
  • Magnet System: Neodymium Rear Chamber Underhung
  • Dome Type: Acuflex Handcoated Soft Dome
  • Dome Material: Silk
  • Net Weight Kg (lb): 0.35 (0.77)

Further Information

Morel Elate Carbon - User Manual (PDF)
