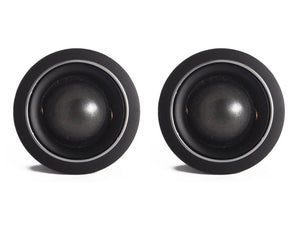

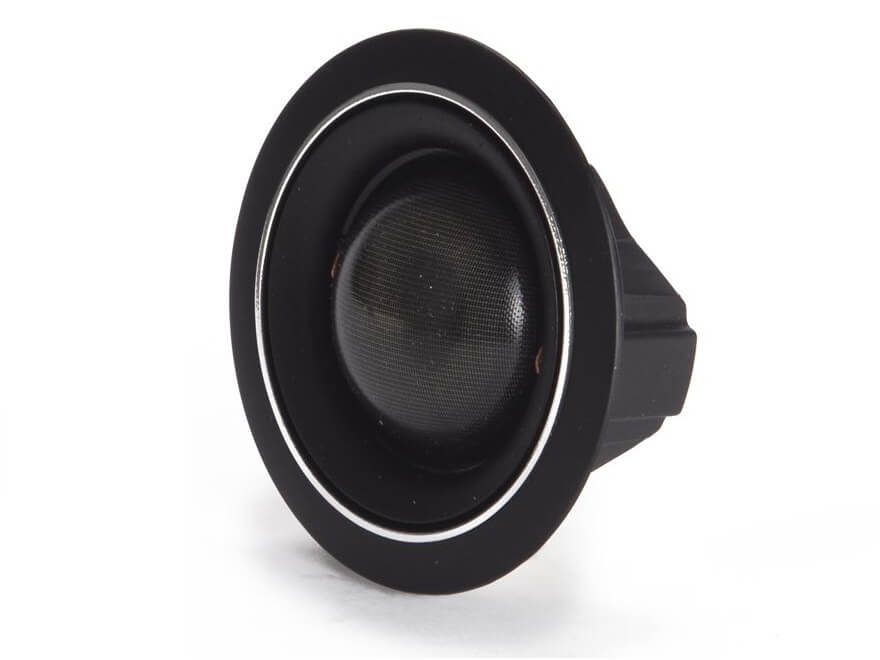

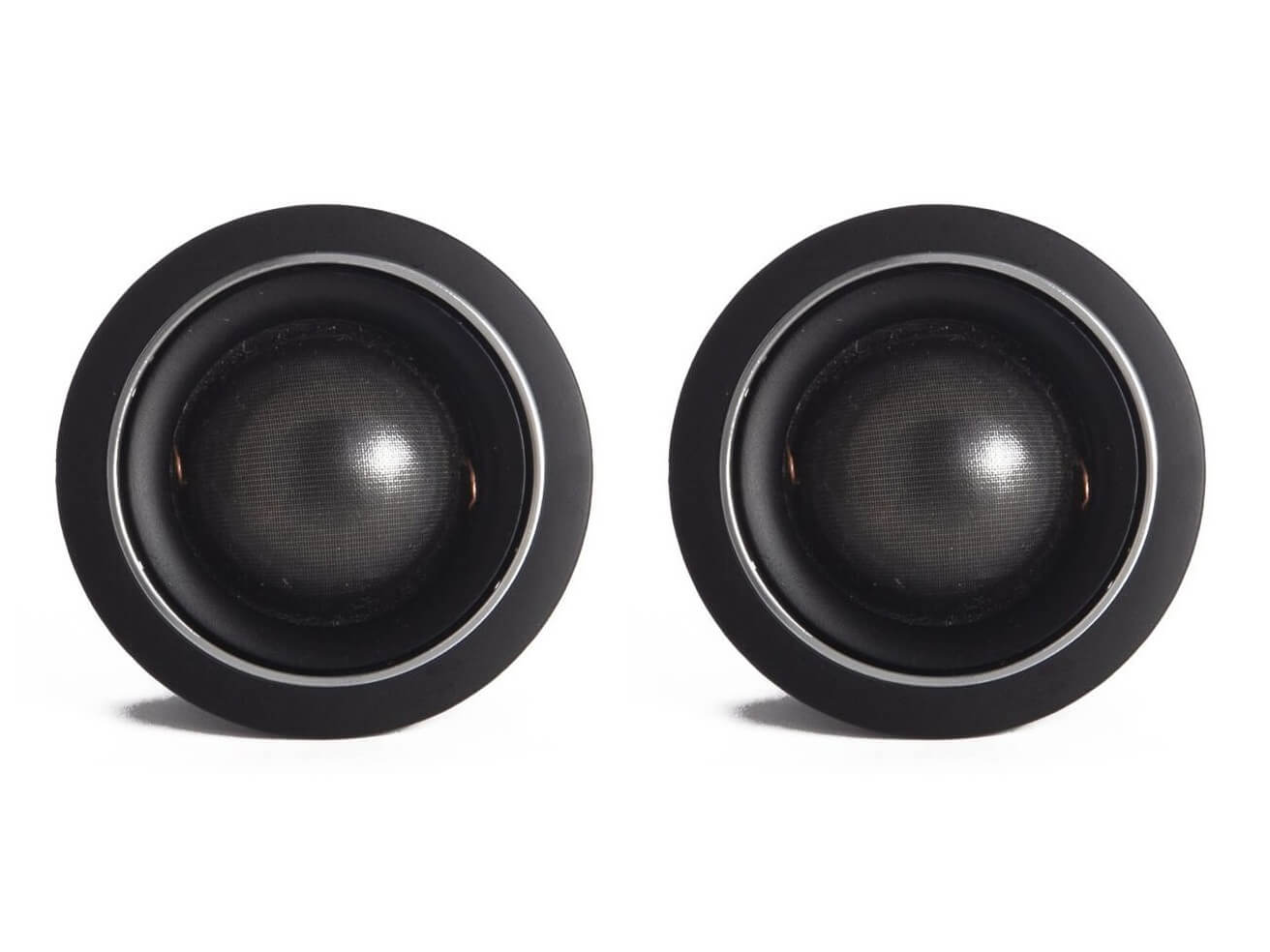

The new generation Elate tweeter offers unrivalled high frequency performance in a compact design with incredible high power handling capabilities and very low distortion levels. Known as the Morel Elate Carbon MT-450, its design leverages Morel’s signature Acuflex coated 28mm soft dome, open cavity design, and dual neodymium motor technologies.
While its size allows it to be fit into most factory locations, their chrome ringed surface and flush mount options provide an elegant look fitting for modern vehicles.
Morel’s double drive system generates more magnetic energy than a single magnet of similar size, increasing efficiency and the dynamic range.
The position of the secondary magnet fixed above the top plate in the motor is the key in controlling stray magnetic flux, thus generating a more focussed magnetic field while also contributing to the “shielded” characteristic of our speakers.
Handcrafted Acuflex Soft Dome
A specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range.
The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.
Hexatech Aluminium Voice Coil
Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings. This increases efficiency by up to 20%.
Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
- Nominal Impedance (Ohm): 6
- Power Handling Wrms: 130
- Max Transient Power Handling Wrms: 350
- Sensitivity (2.83 V/1M) dB: 91
- Frequency Response: 1400 - 25000
- Resonant Frequency Fs Hz: 1000
- Voice Coil Diameter mm (inch): 28 (1.125)
- Voice Coil Former: Aluminium
- Voil Coil Wire: Hexatech Aluminium
- DC Resistance (ohm): 5.2
- Magnet System: Neodymium Rear Vented
- Dome Type: Acuflex Handcoated Soft Dome
- Dome Material: Silk
- Unit Diameter mm (inch): 43.00 (1.69)
- Net Weight Kg (lb): 0.07 (0.15)
