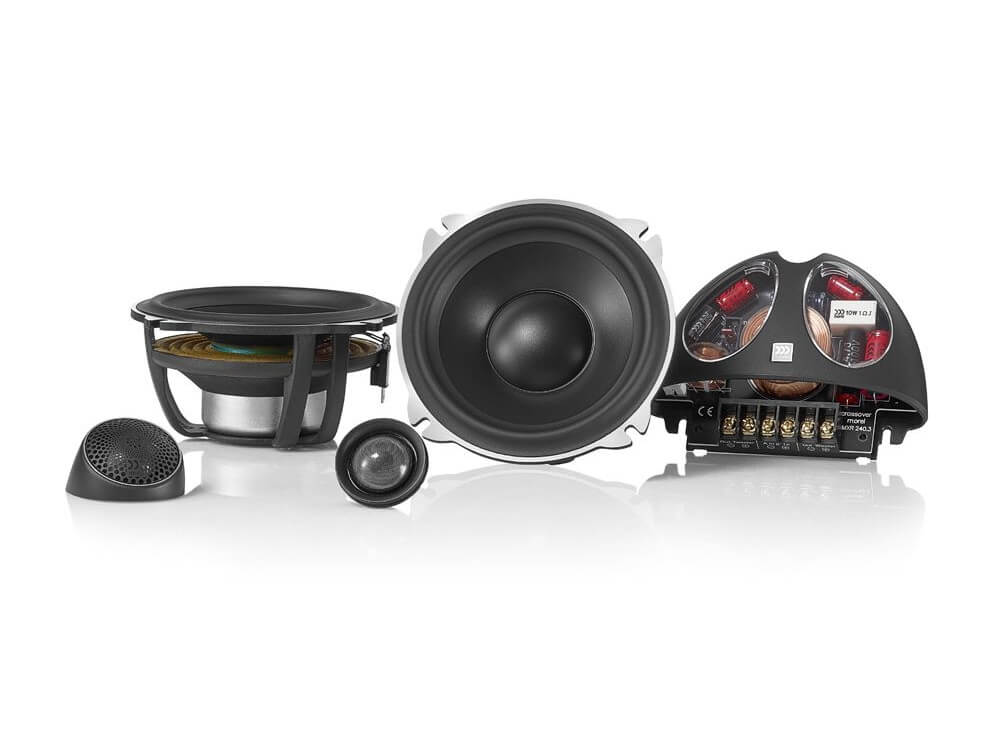

Morel Hybrid 52 - 2-Way Component Speakers

£999.00

In StockIn StockOut of Stock
VAT included. Shipping calculated at checkout.

Quantity: Speaker Set

  • Speaker Set
Back In Stock on - [19041994]

Notify me when this product is available:

visamastermaestroamerican expresspaypalapple paygoogle payshopify payklarna
Trustpilot Image

Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Morel Hybrid 52 - 2-Way Speaker system defines an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid system gives a further refined listening experience, captivating you with the raw emotions of listening to live music.

Their subtle balance of resolution, power, and efficiency has been further optimised to exceed expectations regardless of what genre of music you enjoy.

Key Features

C.A.R Filter

Controlled Acoustic Resistance – The C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.

EVC Motor

Morel speakers with EVC™ technology utilise voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity.

The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.

Handcrafted Acuflex Soft Dome

A specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range. The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.

Hexatech Aluminium Voice Coil

Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.

Hybrid Magnet Motor

The Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.

Paper Cone

In use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.

Technical Specifications

Hybrid MT300 Tweeter

  • Nominal Impedance (Ohm): 6
  • Power Handling Wrms: 130
  • Max Transient Power Handling Wrms: 350
  • Sensitivity (2.83 V/1M) dB: 93
  • Frequency Response: 1600 - 25000
  • Resonant Frequency Fs Hz: 1200
  • Voice Coil Diameter mm (inch): 28 (1.125)
  • Voice Coil Type/Former: Aluminium
  • Voice Coil Wire: Hexatech Aluminium
  • DC Resistance (ohm): 5.2
  • Magnet System: Double Magnet Neodymium
  • Dome Type: Acuflex Hand Coated Soft Dome
  • Dome Material: Silk
  • Unit Diameter mm (inch): 43.00 (1.69)
  • Net Weight Kg (lb): 0.067 (0.134)

Hybrid MW5 Mk2 Woofer

  • Nominal Impedance (Ohm): 4
  • Power Handling Wrms: 120
  • Max Transient Power Handling Wrms: 500
  • Sensitivity (2.83 V/1M) dB: 90
  • Frequency Response: 45 - 3000
  • Resonant Frequency Fs Hz: 56
  • Voice Coil Diameter mm (inch): 54 (2.1)
  • Voice Coil Height mm (inch): 10.50 (0.41)
  • Voice Coil Type/Former: Aluminium
  • Voice Coil Wire: Hexatech Aluminium
  • DC Resistance (ohm): 3
  • Magnet System: Hybrid Rear Vented
  • Cone Type: One-Piece Formed
  • Cone Material: DPC
  • Unit Diameter mm (inch): 135 (5.25)
  • Net Weight Kg (lb): 0.60 (1.32)

Further Information

Morel Hybrid Speaker Systems - User Manual (PDF)
