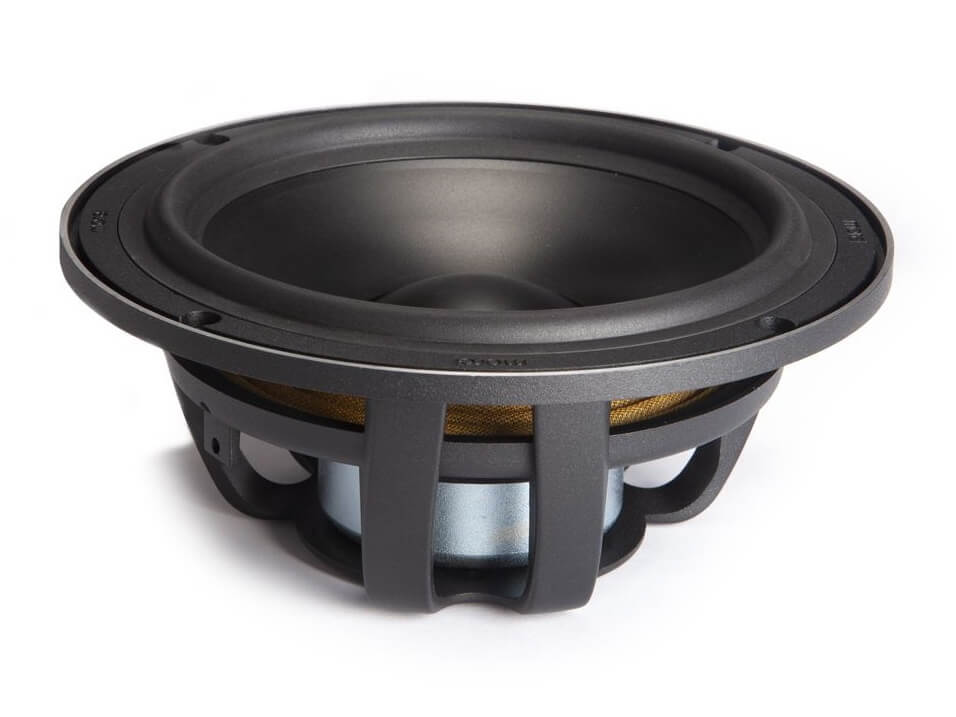

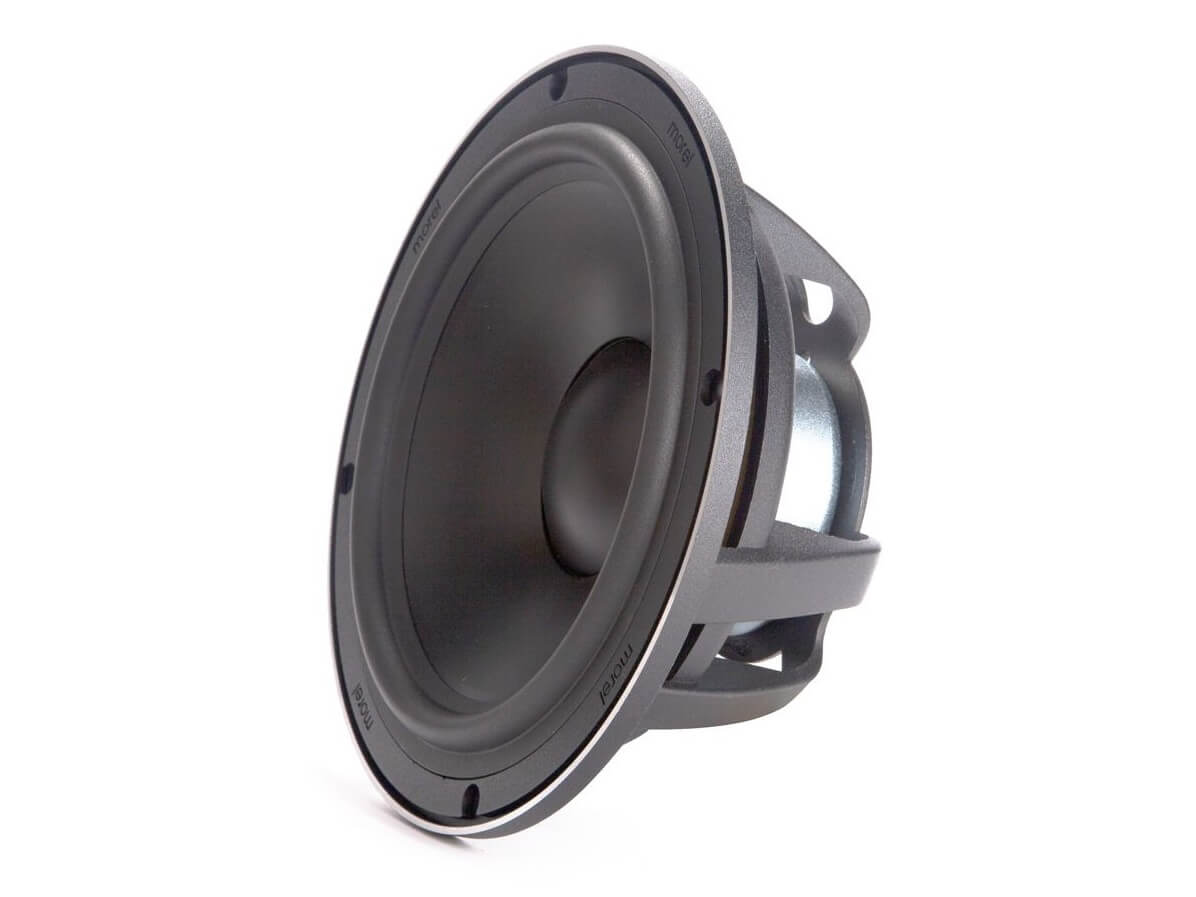

The Morel Hybrid MW6 woofers innovative design is key to the powerful transient sound quality it delivers.
All of the Hybrid MW models incorporate Morel’s core technologies. A 2 ¼” Aluminium Hexatech Extrenal Voice Coil wound on an aluminium former enables stable, efficient and linear piston-like movement which effectively reduces distortion levels.
Morel’s optimised one-piece DPC cone forms a flat geometric plane that improves sound dispersion and dynamics, creating a realistic three-dimensional sound presentation.
The new Hybrid woofers’ suspension improves the mechanical movement and stability of the membrane, attributing it to very low distortion level at high power and better low frequency dynamic range.
DPC, or Damped Polymer Cone, is a direct derivative of the cones Morel has built its reputation upon. With high self-damping characteristics, this cone provides exceptional sound quality without coloration or harshness.
Hexatech Aluminium Voice Coil
Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
Hybrid Magnet Motor
The Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.
- Nominal Impedance (Ohm): 4
- Power Handling Wrms: 140
- Max Transient Power Handling Wrms: 600
- Sensitivity (2.83 V/1M) dB: 91
- Frequency Response: 35 - 3000
- Resonant Frequency Fs Hz: 45
- Voice Coil Diameter mm (inch): 54 (2.1)
- Voice Coil Height mm (inch): 11 (0.47)
- Voice Coil Type/Former: Aluminium
- Voice Coil Wire: Hexatech Aluminium
- DC Resistance (ohm): 3
- Magnet System: Hybrid Rear Vented
- Cone Type: One-Piece Formed
- Cone Material: DPC
- Unit Diameter mm (inch): 165 (6.50)
- Net Weight Kg (lb): 0.60 (1.32)
